OPT-IDB1-M023G-L25 Compact fixed-mount code reader
Manufacturer part number: OPT-IDB1-M023G-L25
Series: OPT-IDB1 (B1-Serie)
- Code type
- 1D and 2D
- DPM capable
- Yes
- Resolution
- 2.3 MP (1920 × 1200 px)
- Max. reading speed
- 50 Codes/s
- Focus type
- Manual focus
- Focal length / optics
- 25 mm (M8-Mount)
- Working / focus range
- 50 – 2000 mm
- Communication
- Ethernet, RS-232
- Industrial protocols
- PROFINET, EtherNet/IP, Modbus, TCP/IP, UDP, FTP
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-IDB1-M023G-L25 |
|---|---|
| Lens focal length | 25 mm |
| Sensor type | CMOS, Global Shutter |
| Resolution | 1920 × 1200 |
| Pixel size | 3.0 µm×3.0 µm |
| Sensor size | 1/2.6" |
| Exposure time | 6 µs ~ 1 sec |
| Gain | 1 dB ~ 16 dB |
| Maximum processing frame rate | 40 fps |
| Maximum decoding speed | 50 Lesungen/s |
| Optical interface | M8-Mount |
| Focusing method | manueller Fokus |
| Reading distance | 50–2000 mm |
| 1D Barcodes | Code 39, Code 128, EAN-8, EAN-13, UPC-A, UPC-E, Code 93, GS1-128, GS1 DataBar Expanded, ITF, Pharmacode, Codabar and more |
| 2D Barcodes | QR Code, Data Matrix, PDF417 and more |
| Communication modes | UDP, TCP, serial, HTTP, Modbus, FTP, PROFINET, EtherNet/IP and more |
| Light source | wahlweise red, white, blue |
| Aiming device | grüne LED |
| Interface type | 17-pin M12: power, digital inputs and outputs, serial port and Ethernet |
| I/O interface | 2 opto-isolated inputs, 2 opto-isolated outputs |
| Communication interface | 1 RS232, 1 Fast Ethernet (100 Mbit/s) |
| Power supply | 24 VDC ±20 % |
| Power consumption | < 20 W@24 VDC |
| Lens cover | Klarer Objektivdeckel, wahlweise polarisierter Objektivdeckel |
| Temperature | Operation 0 °C up to 50 °C; Lagerung −20 °C up to 70 °C |
| Humidity | < 85 % RH (non-condensing) |
| Dimensions | 54.75 mm×53 mm×26.45 mm |
| Weight | 234 g |
| Protection level | IP62 |
| Certified product | CE, ROHS |
| Interface | Ethernet, RS-232 |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

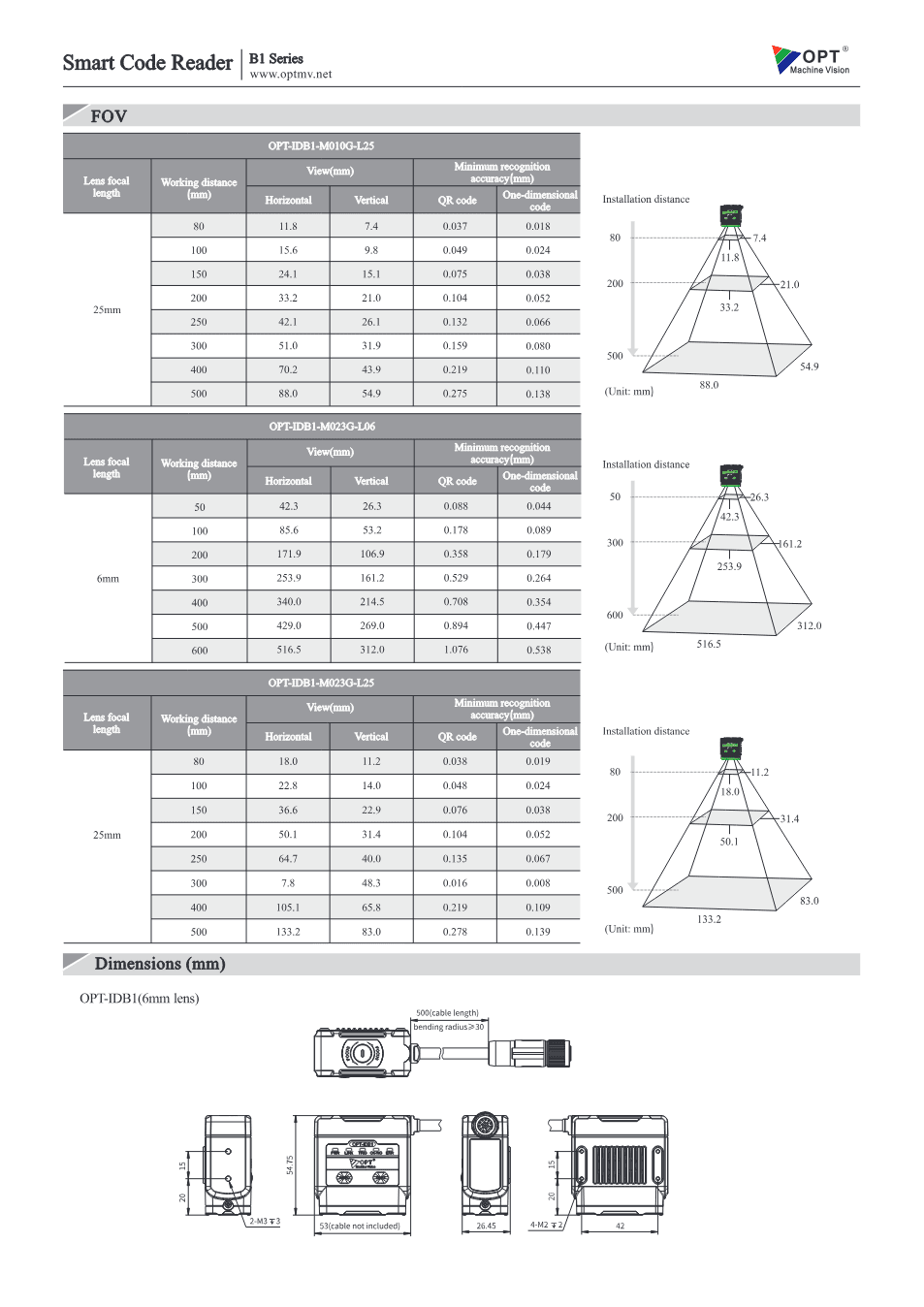

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-IDB1 (B1-Serie) (PDF, EN)
Datasheet · EN · 5380 KB
Description
The B1 series is OPT's compact code reader with manual focus: 54.75 × 53 × 26.45 mm, IP62, reading distance 50 to 2000 mm. The built-in decoder with deep learning algorithm reads 1D and 2D codes even with dirt, damage, curved surfaces and low contrast, including high-density DPM codes. Lighting optionally red, white or blue; polarizing filters and diffusers are provided for.
Connection is via a 17-pin M12 socket carrying power, digital inputs/outputs, RS232 and Fast Ethernet; TCP, UDP, Serial, HTTP, Modbus, FTP, Profinet and Ethernet/IP are supported.
OPT-IDB1-M023G-L25 comes with resolution 1920×1200, 40 fps, focal length 25 mm, M8 mount. If you tell us your inspection task, reading distance and connection, we check the variant and accessories and quote price and delivery time.
