OPT
Base station OPT-IDR2-W27
Manufacturer part number: OPT-IDR2-W27
Series: OPT-IDR2 (R2-Serie)
- Device type
- Base station
- Communication
- USB, RS-232, Ethernet
- Ingress protection
- IP62
- Weight
- 193 g
Suitable for: OPT-IDR2-M010G-L04-511-W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-IDR2-W27 |
|---|---|
| Communication mode | UDP, TCP, Serial, HTTP, Modbus, Profinet, Ethernet/IP Communication, Virtual Keyboard |
| Communication output interface | 1 road USB2.0, 1 RS232, 1 Fast Ethernet (100Mbit/s) |
| Control the output interface | 1 light coupling isolation control input, 3 road light coupling isolation control output |
| Power supply | 9 VDC |
| Protection level | IP62 |
| Dimensions | 112 mm×83.9 mm×62.3 mm |
| Weight | 193 g |
| Communication base parameters | Base station |
| Product Model and Parameters | OPT-IDR2-M010G-L04-511-W |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

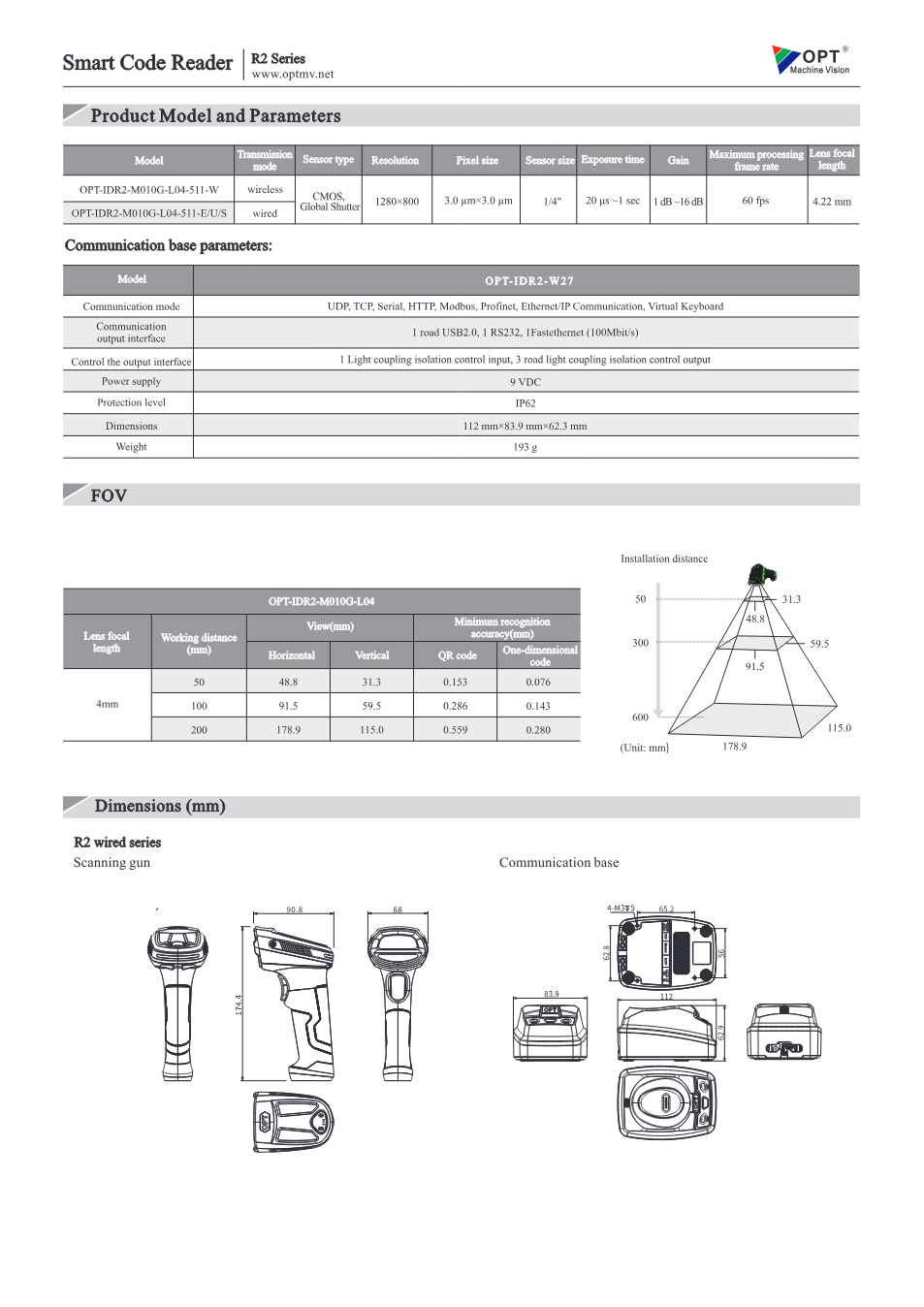

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-IDR2 (R2-Serie) (PDF, EN)
Datasheet · EN · 4243 KB
Accessories
Data cables(10)
OPT
Anschlusskabel Ethernet mit Versorgung CB-RJ48-M004-S1.8M, 1,8 m (Standard)
RJ48 (Handscanner / Basisstation) · 1.8 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel Ethernet mit Versorgung CB-RJ48-M004-S3M, 3 m (Standard)
RJ48 (Handscanner / Basisstation) · 3 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel USB CB-RJ48-M001-S1.8M, 1,8 m (Standard)
RJ48 (Handscanner / Basisstation) · 1.8 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel USB CB-RJ48-M001-S3M, 3 m (Standard)
RJ48 (Handscanner / Basisstation) · 3 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel USB mit Versorgung CB-RJ48-M003-S1.8M, 1,8 m (Standard)
RJ48 (Handscanner / Basisstation) · 1.8 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel USB mit Versorgung CB-RJ48-M003-S3M, 3 m (Standard)
RJ48 (Handscanner / Basisstation) · 3 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel RS-232 mit Versorgung CB-RJ48-M005-S1.8M, 1,8 m (Standard)
RJ48 (Handscanner / Basisstation) · 1.8 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel RS-232 mit Versorgung CB-RJ48-M005-S3M, 3 m (Standard)
RJ48 (Handscanner / Basisstation) · 3 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel RS-232 mit Versorgung CB-RJ48-M006-S1.8M, 1,8 m (Standard)
RJ48 (Handscanner / Basisstation) · 1.8 m
Kabel (Datenblatt: Matching Cables)
OPT
Anschlusskabel RS-232 mit Versorgung CB-RJ48-M006-S3M, 3 m (Standard)
RJ48 (Handscanner / Basisstation) · 3 m
Kabel (Datenblatt: Matching Cables)
Description

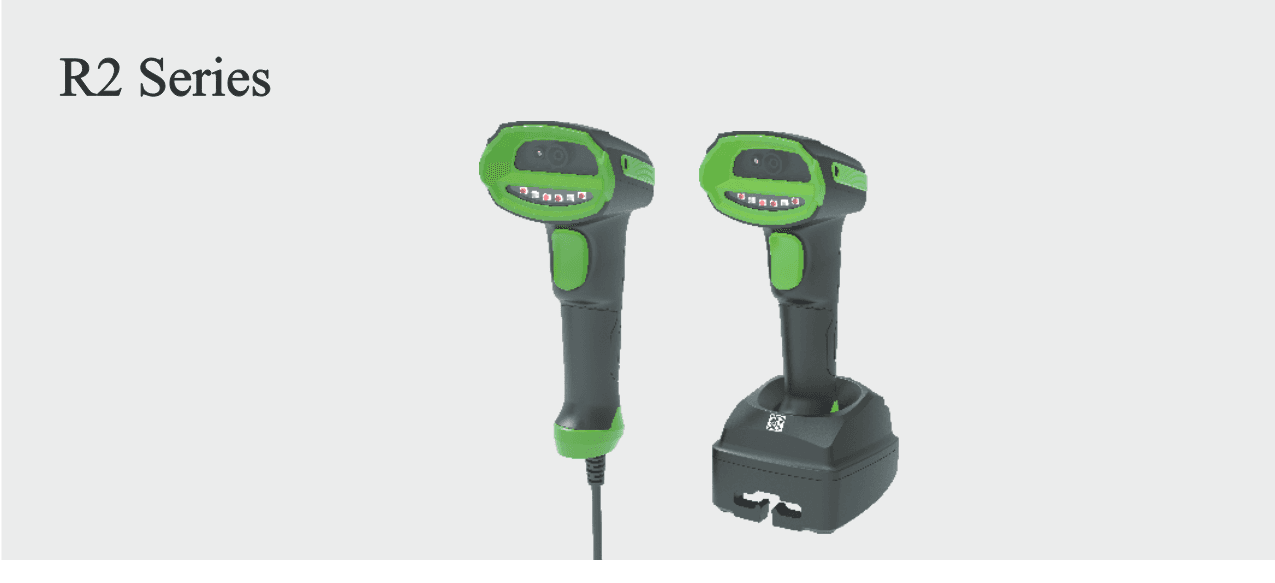

OPT-IDR2-W27 is the base station for the wireless handheld scanner OPT-IDR2-M010G-L04-511-W of the R2 series (OPT: "Communication base"). The scanner sends its read results via WLAN (WiFi4, 2.4 GHz, up to 85 m in open space according to the datasheet) to the base station, which passes them on to the controller or PC via USB 2.0, RS-232 or Fast Ethernet (100 Mbit/s) - as TCP, UDP, serial, HTTP, Modbus, Profinet, EtherNet/IP or as a virtual keyboard. It also provides one optocoupled control input and three optocoupled outputs; supply 9 VDC, IP62 rating.
The connection cables OPT lists for it in the datasheet (CB-RJ48-…, 1.8 m and 3 m) are shown below under accessories. Tell us your inspection task, reading distance and connection, and we will check variant and accessories and quote price and delivery time.
