HIKROBOT

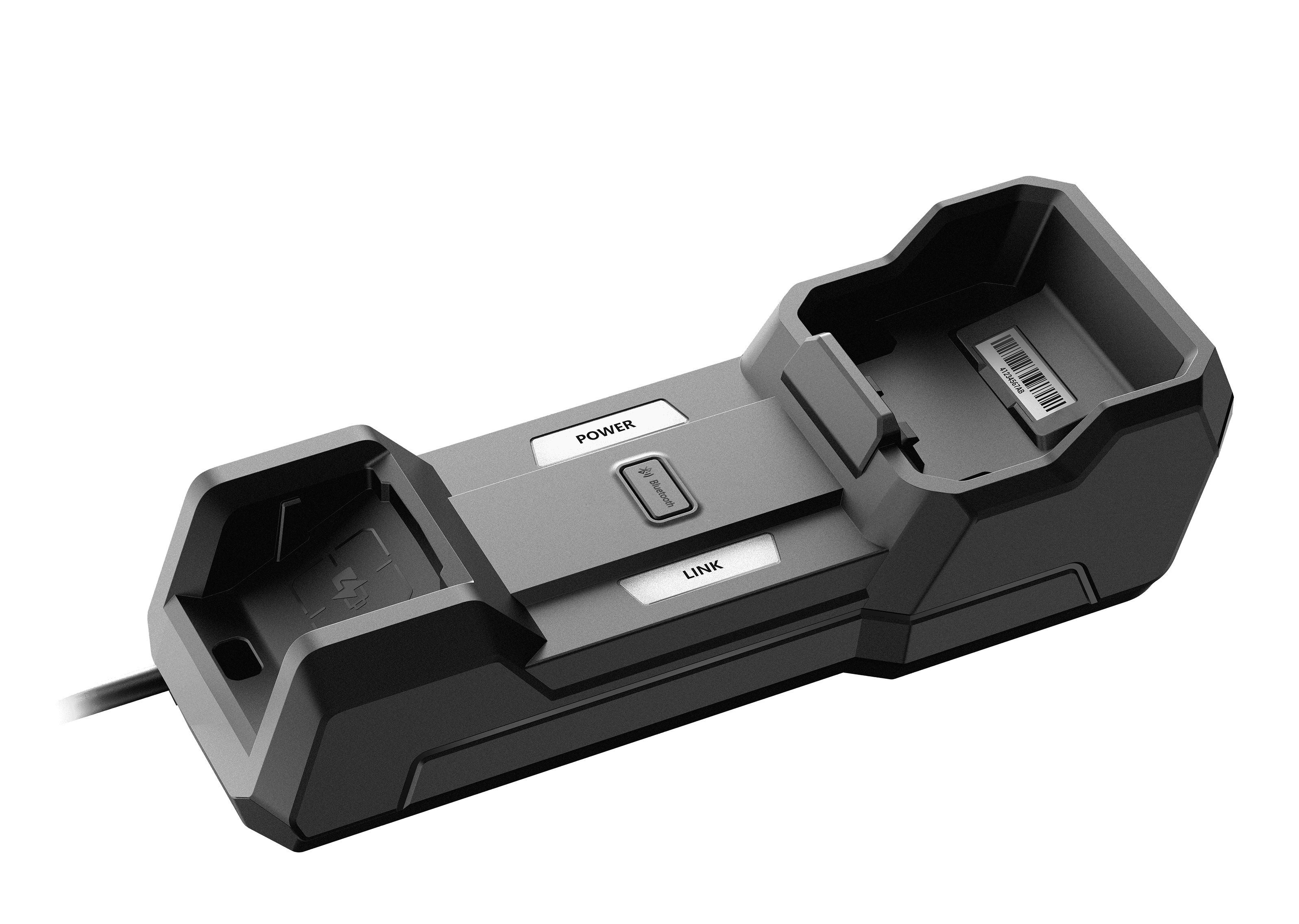

Base station MV-IDH9000B/SBASE/L
Manufacturer part number: MV-IDH9000B/SBASE/L
- Device type
- Base station
- Communication
- RS-232, Ethernet, Bluetooth
- Ingress protection
- IP65
- Weight
- 380 g
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-IDH9000B/SBASE/L |
|---|---|
| Type | LAN Smart Base |
| Communication mode | Bluetooth BT 5.0, BLE |
| Wireless range | 100 m (open area) |
| Communication protocol | SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, MELSEC |
| Data interface | Fast Ethernet (100 Mbit/s)2, RS-232, DC terminal |
| Power supply | DC terminal: 12 VDC to 24 VDC PoE: 48 VDC |
| Current consumption | DC terminal: 1.1 A (max.), 0.15 A (during standby) PoE: 0.35 A (max.), 0.1 A (during standby) |
| Charging time | 6 h |
| Dimension | 257.9 mm × 99 mm × 67.6 mm (10.2" × 3.9" × 2.7") |
| Weight | Approx. 380 g (0.8 lb.) |
| Ingress protection | IP65 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5 % RH to 95 % RH (no condensation) |
| Input voltage | DC terminal: 12 VDC to 24 VDC PoE: 48 VDC |
| Device type | Basisstation |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Data Sheet HikRobot Handscanner MV-IDH9000B/SBASE/L
Datasheet · EN · 460 KB
- Download
Firmware HikRobot Handscanner MV-IDH9000B/SBASE/L
Technical drawing · EN · 31 MB
- Download
Industrial Protocol HikRobot Handscanner MV-IDH9000B/SBASE/L
Technical drawing · EN · 8 MB
- Download
Drawing HikRobot Handscanner MV-IDH9000B/SBASE/L
Technical drawing · EN · 3 MB
Software and SDK (5)
- Download
IDMVS V5.1.0 (Windows)
Software / firmware · EN · 478 MB
- Download
IDMVS V5.1.0 (Linux)
Software / firmware · EN · 1061 MB
- Download
IDAS V1.2.3 (Android)
Software / firmware · EN · 27 MB
- Download
IDMVS V4.2.4 (Windows)
Software / firmware · EN · 641 MB
- Download
IDMVS V4.2.4 (Linux)
Software / firmware · EN · 361 MB
- Download
User Manual HikRobot Handscanner MV-IDH9000B/SBASE/L
Manual · EN · 4 MB
Description
Key Feature - Adopts Bluetooth 5.0 wireless technology to provide stable connection with max. transmission distance of 100 meters in open areas, and supports mobile terminal connection via Bluetooth for convenient and efficient operations. - Supports wireless charging, preventing potential metal electrode wear and metal filing interference. - Supports multiple charging methods, such as charging via smart base, Type-C connector, or PoE connection with smart base. - The communication protocols supported by the USB type device are SmartSDK, USB, Serial, and Bluetooth. The communication protocols supported by the network type device are SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, EthernetIP, Bluetooth, and Modbus.
