HIKROBOT

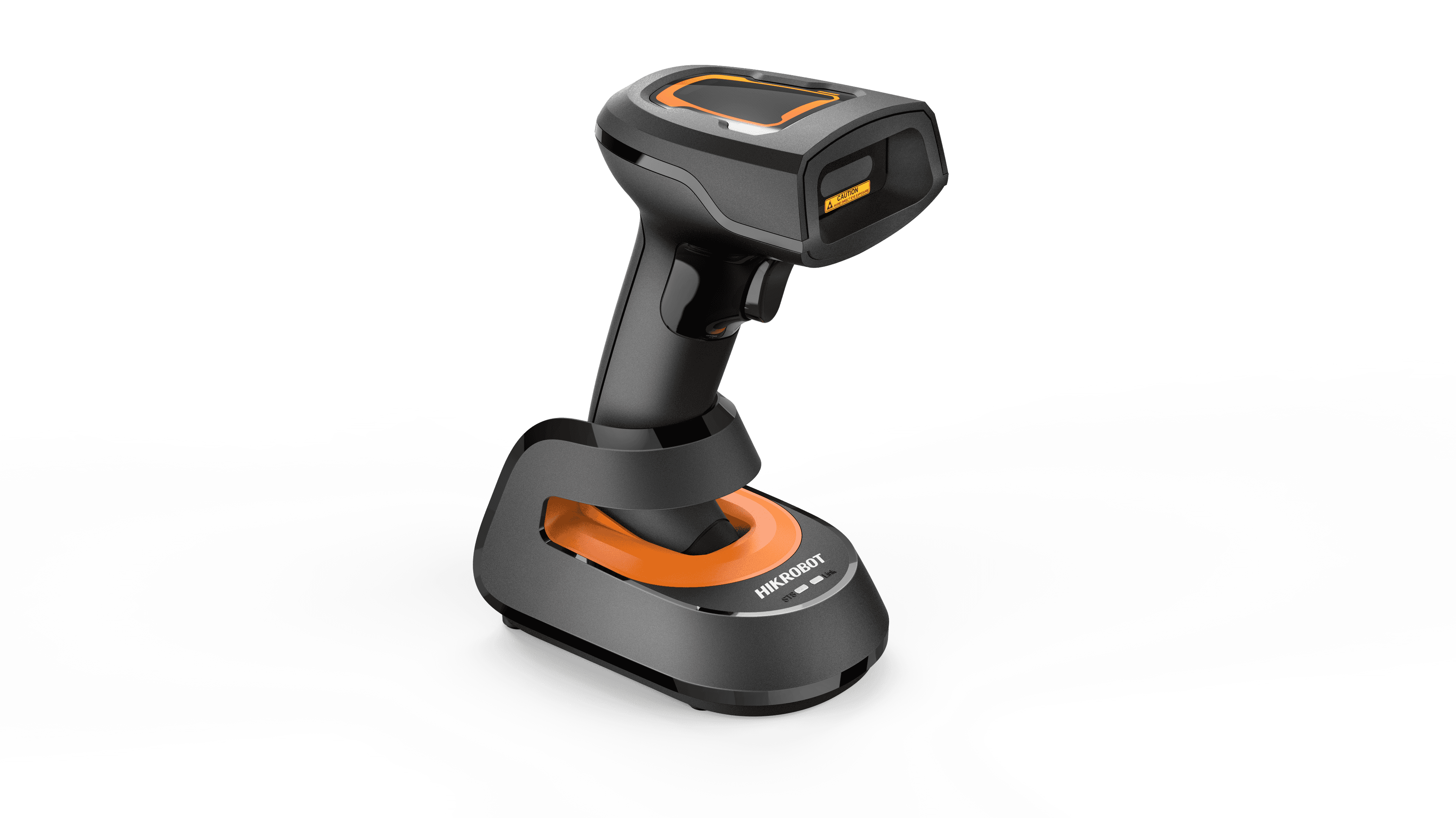

Handheld reader MV-IDH2000RF/13SR/05WN/UC
Manufacturer part number: MV-IDH2000RF/13SR/05WN/UC
- Device type
- Handscanner with Basisstation
- Code type
- 1D and 2D
- Reading profile
- Standard range
- Design
- Cordless
- Communication
- USB, Funk
- Ingress protection
- IP42
- Weight
- 160 g
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | MV-IDH2000RF/13SR/05WN/UC |
|---|---|
| Type | Wireless Handheld Code Reader Package |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 25, ITF 14, UPCA, UPCE 2D codes: QR Code, Data Matrix, MicroQR, Aztec, Han Xin Stacked codes: PDF417 |
| Min. accuracy | 1D codes: 3 mil 2D codes: 10 mil |
| Max. frame rate | 50 fps |
| Sensor type | CMOS, global shutter |
| Pixel size | 2.7 µm × 2.7 µm |
| Sensor size | 1/4" |
| Resolution | 1280 × 1024 |
| Depth of field | Code 128 (3 mil): 70 mm to 160 mm Code 128 (10 mil): 30 mm to 440 mm QR Code (10 mil): 45 mm to 235 mm QR Code (15 mil): 20 mm to 360 mm QR Code (20 mil): 20 mm to 460 mm |
| Field of view | Horizontal 39°, vertical 29° |
| Symbol contrast | 20 % |
| Detection angle | Tilt angle ± 60°, skew angle ± 60°, rotation angle 360° |
| Radio frequency | 2.4 G |
| Wireless range | 80 m (open range) |
| Communication protocol | SmartSDK, USB, 2.4 G |
| Data interface | Code reader: USB 2.0 (Type B) Smart base: USB 2.0 (Type B), USB 2.0 (Type A) |
| Battery | 2700 mAh, chargeable lithium battery |
| Charging time | 6 h |
| Endurance | 12 h (interval scanning, once in 2 seconds) |
| Power supply | 5 VDC |
| Max. power consumption | 6 W @ 5 VDC |
| Focal length | 4.9 mm |
| Lens mount | M5.0-mount |
| Ambient illumination | 0 lux to 100000 lux |
| Light source | White LED |
| Aiming system | Cross laser aiming |
| Prompt | LED indicator, buzzer |
| Dimension | Code reader: 66.5 mm × 94 mm × 169.5 mm (2.6" × 3.7" × 6.7") Smart base: 82.6 mm × 121.8 mm × 76.1 mm (3.3" × 4.8" × 3.0") |
| Weight | Code reader: Approx. 160 g (0.4 lb.) Smart base: Approx. 120 g (0.3 lb.) |
| Ingress protection | Code reader: IP52 Smart base: IP40 |
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) Charging temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | 5 % RH to 95 % RH (no condensation) |
| Laser safety class | Laser 2 |
| Wavelength | 650 nm |
| Beam divergence angle | 14.5° |
| Pulse width | 8 ms |
| Repetitive frequency | 50 Hz |
| Maximum power | 1 mW |
| Client software | IDMVS |
| Certification | CE, KC |
| Input voltage | 5 VDC |
| Device type | Handscanner mit Basisstation |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Documents
- Download datasheet
Data Sheet HikRobot Handscanner MV-IDH2000RF/13SR/05WN/UC
Datasheet · EN · 656 KB
- Download
Drawing HikRobot Handscanner MV-IDH2000RF/13SR/05WN/UC
Technical drawing · EN · 11807 KB
- Download
Firmware HikRobot Handscanner MV-IDH2000RF/13SR/05WN/UC
Software / firmware · EN · 38583 KB
- Download
User Manual HikRobot Handscanner MV-IDH2000RF/13SR/05WN/UC
Manual · EN · 3678 KB
- Download
Industrial Protocol HikRobot Handscanner MV-IDH2000RF/13SR/05WN/UC
Communication protocol · EN · 7713 KB
Description
Key Feature - Built-in code reading algorithm for decoding different types of 1D codes and 2D codes. - Provides good robustness to read codes with spots, defects and low contrast ratio. - Supports continuous code reading, batch code reading for improving code reading efficiency. - Supports 2.4 G wireless communication with stable and reliable signal. - Adopts 2700 mAh battery with long standby time. - IP52 and drop height of 1.5 m.
