di-soric
Handheld reader ID-80-IM3-2-S
Manufacturer part number: ID-80-IM3-2-S
Series: ID-80
- Device type
- Handscanner
- Code type
- 1D and 2D
- Design
- Corded
- Communication
- RS-232
- Ingress protection
- IP54
- Weight
- 110 g
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | ID-80-IM3-2-S |
|---|---|
| Ausführung | Handheld |
| Codearten | BC 412, Code 11, Codabar, Code 128, Code 39, Code 32, Pharmacode, GSI DataBar, Hong Kong 2 of 5, IATA 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC / EAN / JAN, Aztec Code, Data Matrix, QR Code, Micro QR Code, QR Model 1, GoCode® (protected - additional license required), Data Matrix Rectangular Extension, PDF 417, Micro PDF, GS1 Composite (CC-A/CC-B/CC-C) |
| Auflösung | 1280 × 960 Pixel |
| Sensortyp / Bildsensor / Shutter | CMOS |
| Position Scanner zu Code | Tilt 180°, Pitch ± 65°, Skew ± 60° |
| Schnittstelle | RS232 (when operated with ID-K-SD/DCJ-RJ50-2) |
| Anschluss | RS232, RJ 50 |
| Betriebsspannung | 5 V DC |
| Leerlaufstrom (max.) | 300 mA |
| Schutzart | IP 54 |
| Umgebungstemperatur Betrieb | -20 … +55 °C |
| Gehäusematerial | Plastic |
| Gehäuseabmaße | 132 × 52 × 91 mm |
| Gehäuselänge | 91 mm |
| Gehäusebreite | 52 mm |
| Gehäusehöhe | 132 mm |
| Gewicht | 110 g |
| Hinweis | Additional components are required for operation |
| Scope of delivery | Handscanner |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

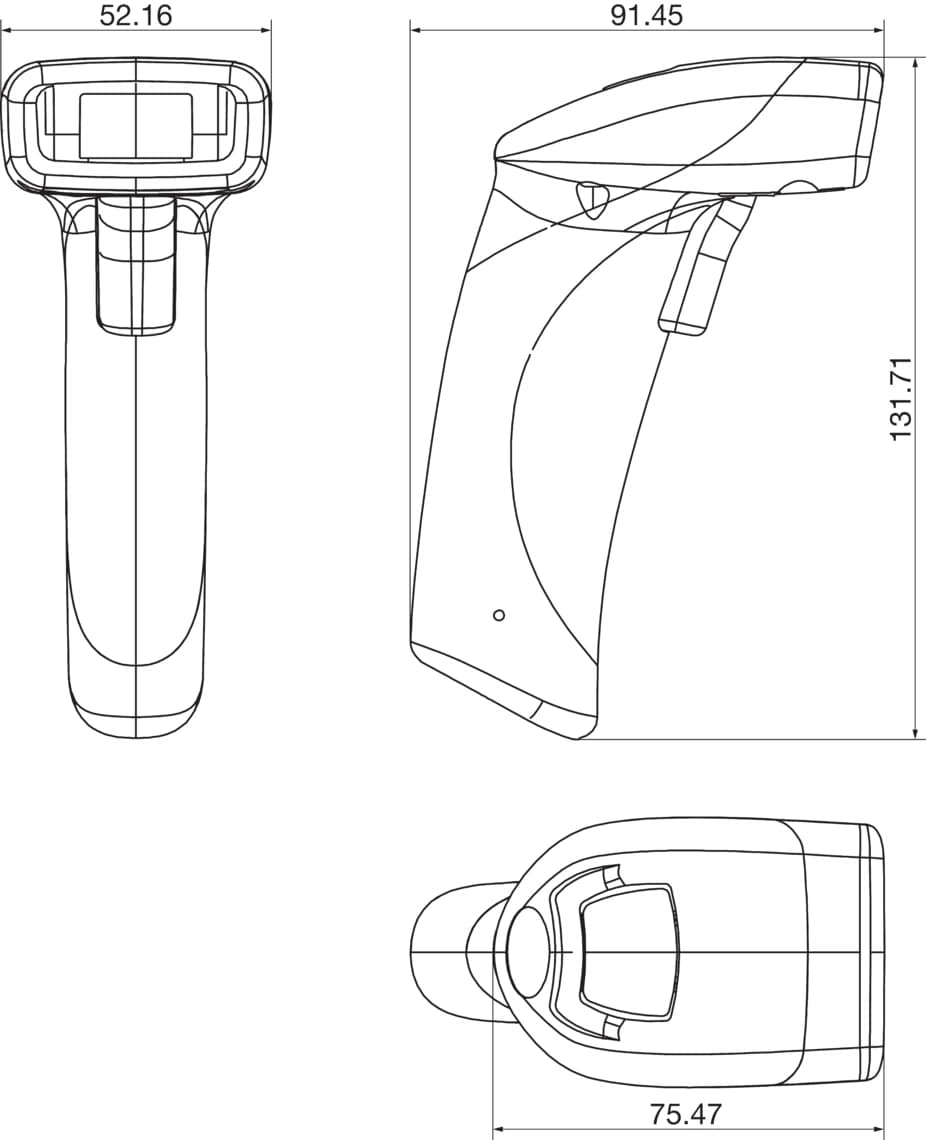

Dimensional drawing
Documents
- Download datasheet
Datasheet ID-80-IM3-2-S
Datasheet · DE · 2 MB
- Download
ID-80-IM3-2-x (STP)
Technical drawing · DE · 14 MB
- Download
ID-80-IM3-2-x (IGS)
Technical drawing · DE · 6 MB
- Download
Configuration Guide ID-80 (PDF)
Quick start guide · DE · 4 MB
Accessories
Description
The ID-80 is a light, compact barcode reader that decodes 1D and 2D codes quickly. Thanks to its ergonomic design, it can be used comfortably over long periods. That, together with its durability and a 5-year warranty, makes it a reliable investment. This easy-to-use code reader outperforms single-line laser scanners and linear imagers with fully omnidirectional barcode reading. Combined with its versatile programmability, the ID-80 transfers encoded data quickly and reliably into any business solution.
