OPT
Line light OPT-LSSX722-R
Manufacturer part number: OPT-LSSX722-R
Series: OPT-LSSX-Serie (Kreuz-Zeilenbeleuchtungen)
- Illuminated area
- 704 mm?
- Light color
- Red
- Cooling
- Fan
- Drive / controller
- Controller empfohlen
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSSX722-R |
|---|---|
| Color | Red |
| Current | 9.1 A |
| Power | 218.4 W |
| Stock Code | 11560100063 |
| Weight(KG) | 3.59 kg |
| Recommended Controller | OPT-DPA10024EB |
| Dimensions (L x W x H) | 722 × 50 × 94 mm |
| Product series | OPT-LSSX (gekreuzt) |
| Illumination arrangement | Crossed / two-sided cross lighting |
| Illuminated area | 704 mm |
| Cooling | Fan |
| Connection | WS20J6TQ |
| Controller required | Recommended |
| Cable length | 1000 ± 20 mm |
| Min. bending radius of the cable | 60 mm |
| Housing length | 722 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

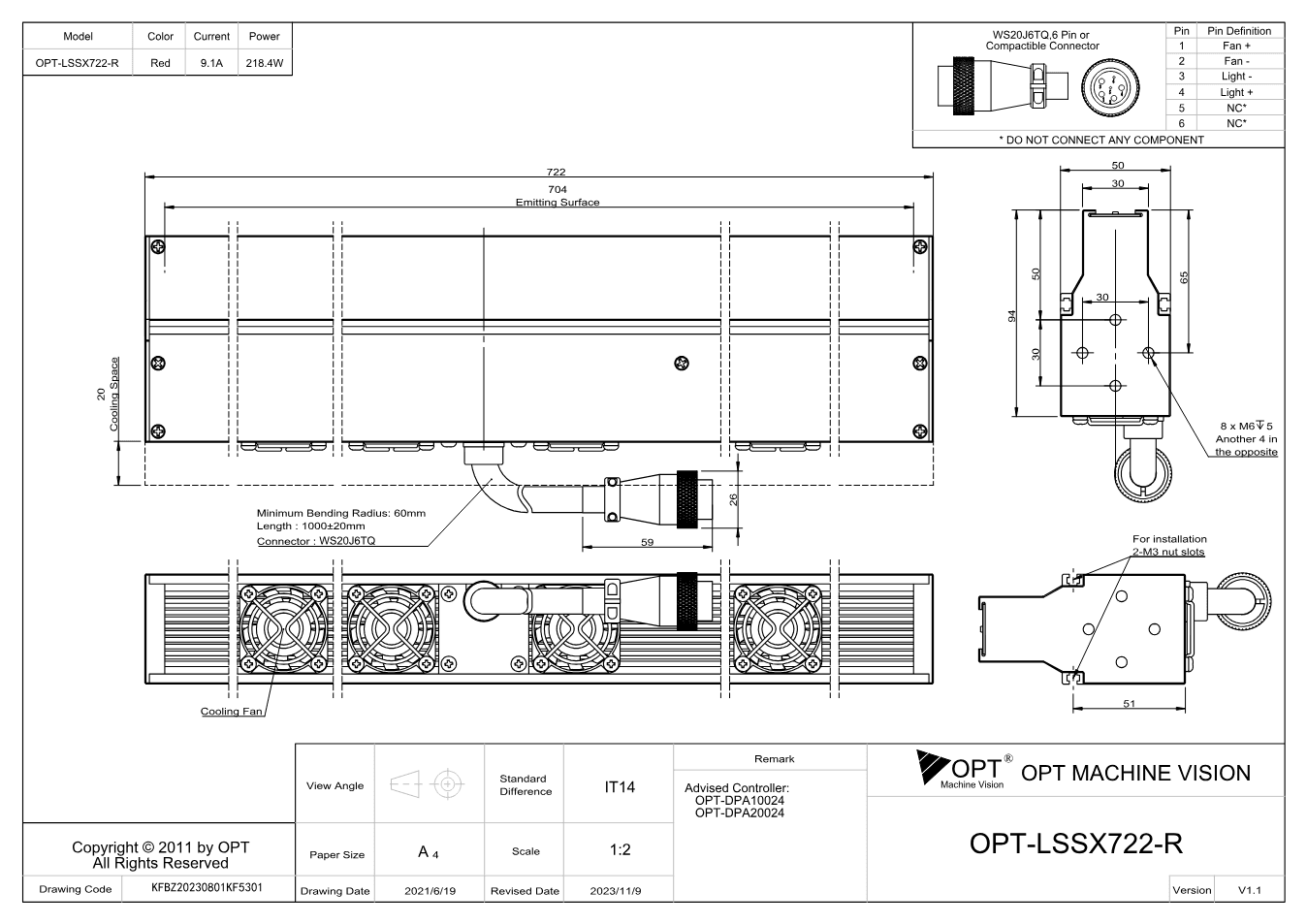

Dimensional drawing
Documents
- Download datasheet
Datasheet OPT-LSSX-Serie (PDF)
Datasheet · EN · 2 MB
- Download
Maßzeichnung OPT-LSSX722 (V1.1) (PDF)
Technical drawing · EN · 174 KB
Accessories
Beleuchtungskabel(9)
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m
WS20J6TQ · 20 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX1M-6P-S-20A, 1 m
WS20J6TQ · 1 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX2M-6P-S-20A, 2 m
WS20J6TQ · 2 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
Light controllers(2)
Description
OPT-LSSX722-R is a crossed line light from the OPT-LSSX series by OPT. Key figures according to the manufacturer: illumination range 704 mm at 722 mm housing length, light color red, power consumption 218.4 W, rated current 9.1 A, fan cooling, connector WS20J6TQ, weight 3.59 kg. OPT recommends the controller OPT-DPA10024EB.
According to the manufacturer, the OPT-LSSX series illuminates the part from both sides via a special optical arrangement. It is intended to detect directional damage and, according to the manufacturer, is suited to both mirror-like and matte surfaces.
