Line light OPT-LSS356-B
Manufacturer part number: OPT-LSS356-B
Series: OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität)
- Illuminated area
- 338 mm?
- Light color
- Blue
- Cooling
- Fan
- Drive / controller
- Controller empfohlen
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSS356-B |
|---|---|
| Color | Blue |
| Current | 5.6 A |
| Power | 134.4 W |
| Stock Code | 11330600426 |
| Weight(KG) | 1.86 kg |
| Recommended Controller | OPT-DPA6024E |
| Dimensions (L x W x H) | 356 × 50 × 94 mm |
| Product series | OPT-LSS (high intensity) |
| Beam characteristic | Highly directional |
| Illuminated area | 338 mm |
| Cooling | Fan |
| Connection | ZQ GX16M-6B |
| Controller required | Recommended |
| Housing length | 356 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

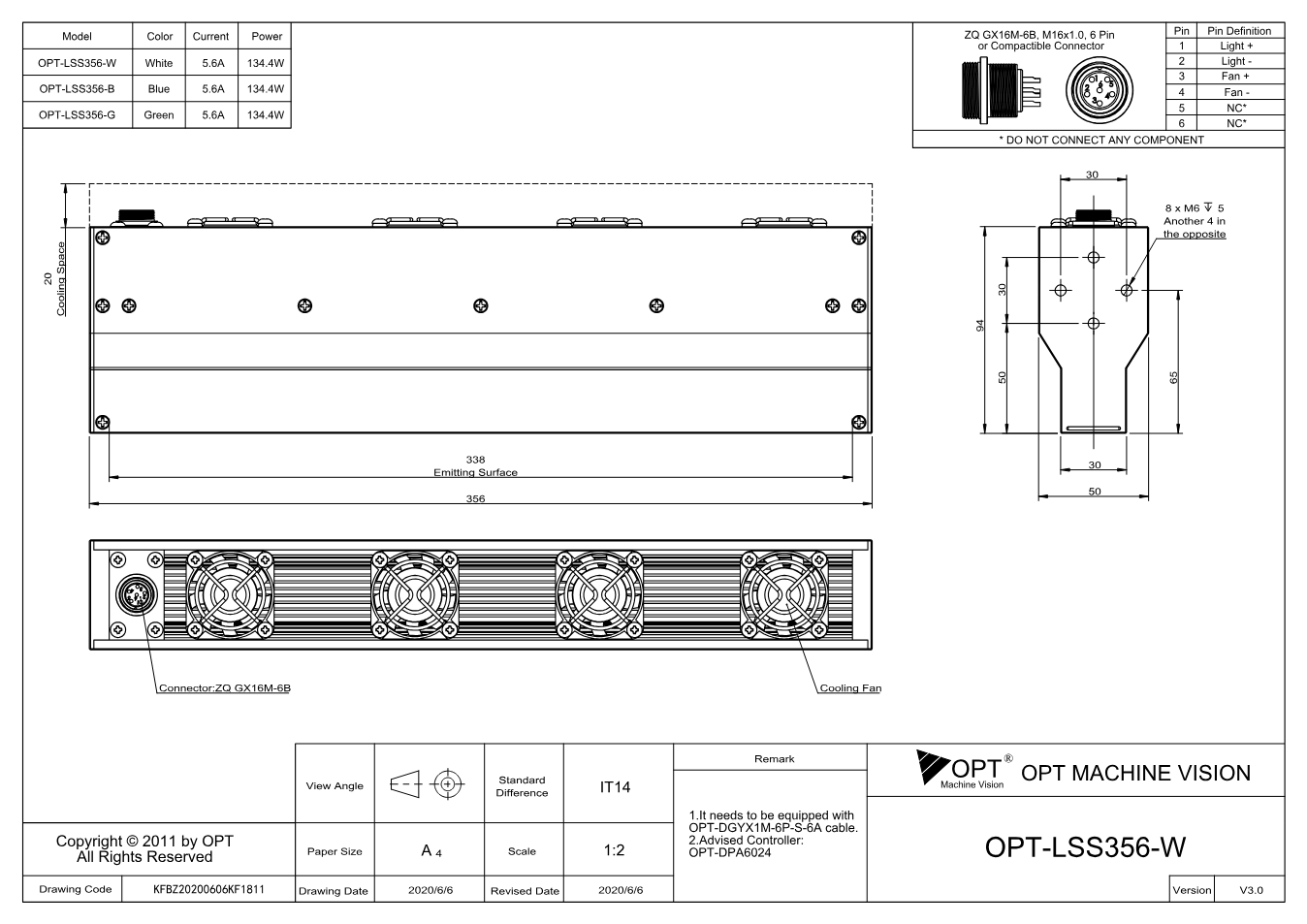

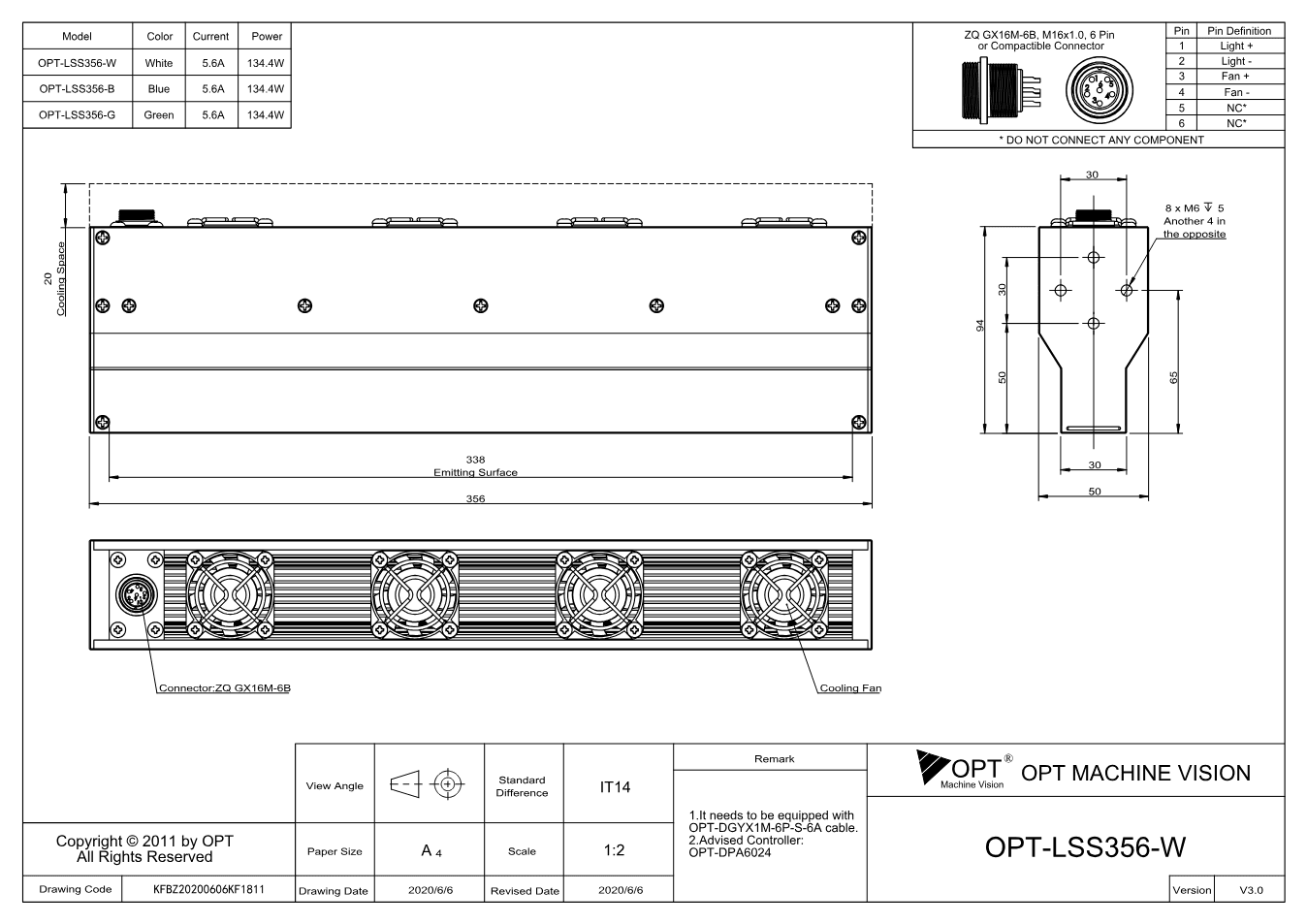

Dimensional drawing
Documents
- Download datasheet
OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 3010 KB
- Download
Maßzeichnung OPT-LSS356 (V3.0) (PDF)
Technical drawing · EN · 147 KB
- Download
Maßzeichnung OPT-LSS356 (V3.0U) (PDF)
Technical drawing · EN · 147 KB
- Download
Maßzeichnung OPT-LSS356 (V2.0) (PDF)
Technical drawing · EN · 225 KB
- Download
Maßzeichnung OPT-LSS356 (V2.0U) (PDF)
Technical drawing · EN · 231 KB
Accessories
Beleuchtungskabel(4)
Light controllers(1)
Description
OPT-LSS356-B is a line light from the OPT-LSS series by OPT. Key figures according to the manufacturer: illumination range 338 mm at 356 mm housing length, light color blue, power consumption 134.4 W, rated current 5.6 A, fan cooling, connector ZQ GX16M-6B, weight 1.86 kg. OPT recommends the controller OPT-DPA6024E.
The OPT-LSS series is OPT's high-power line light for line scan cameras. For the series the manufacturer states up to 2000 klx at 50 mm working distance (measured on four models, guide values according to the manufacturer). This is necessary because a line scan camera exposes each image line for only fractions of a second. The small divergence angle keeps the light concentrated even over larger distances.
