Line light OPT-LSS1826-W

Manufacturer part number: OPT-LSS1826-W

Series: OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität)

Light color: White
Cooling: Fan

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LSS1826-W
Color	white
Current	30.1 A
Power	722.4 W
Channel	2
Dimensions (L x W x H)	1826 × 50 × 94 mm
Product series	OPT-LSS (high intensity)
Beam characteristic	Highly directional
Cooling	Fan
Connection	WS20K6Z
Housing length	1826 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

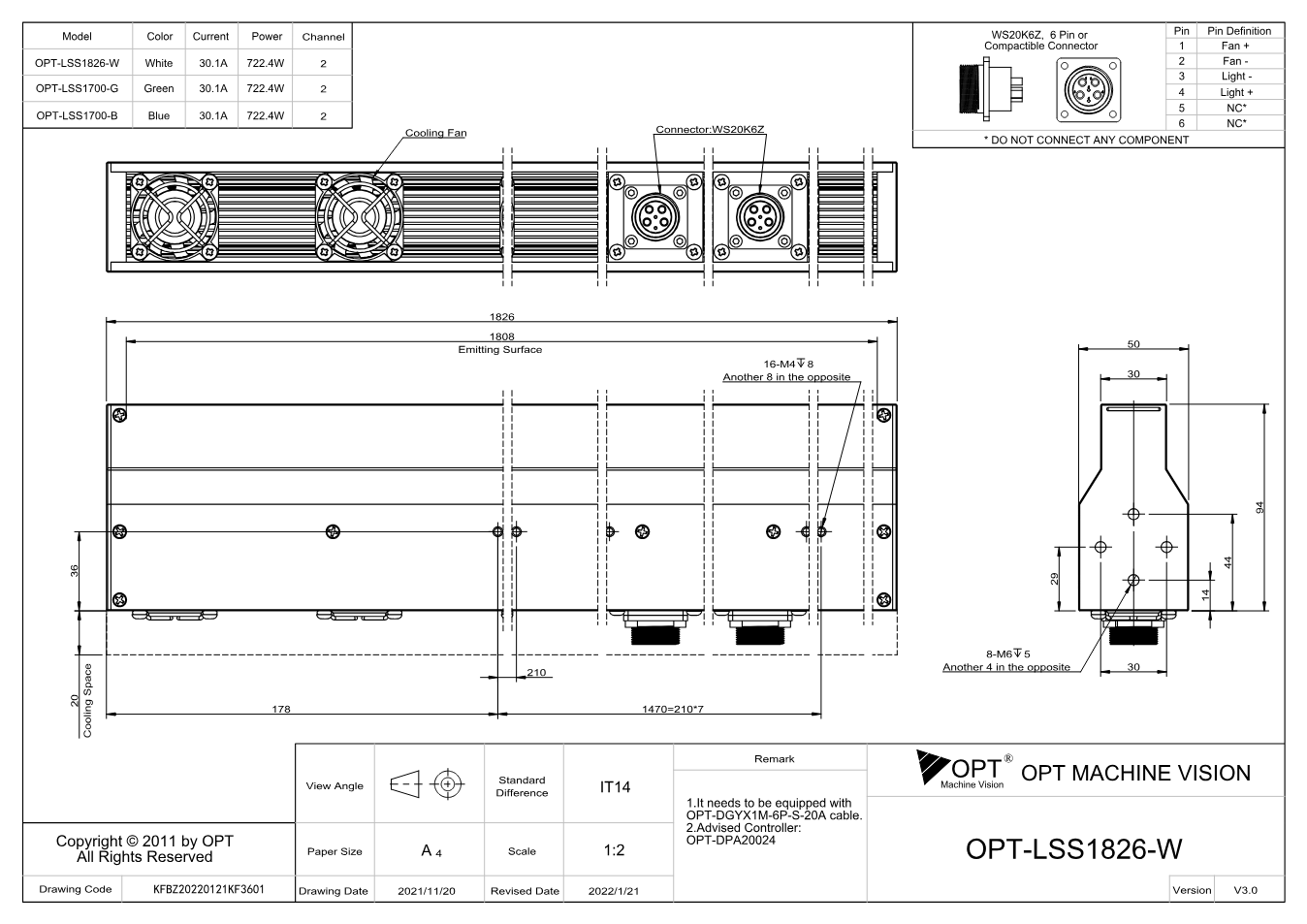

Dimensional drawing

Documents

OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 3010 KB
Download datasheet
Maßzeichnung OPT-LSS1826 (V3.0) (PDF)
Technical drawing · EN · 135 KB
Download
Maßzeichnung OPT-LSS1826 (V3.0U) (PDF)
Technical drawing · EN · 135 KB
Download

Accessories

Beleuchtungskabel(4)

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m

WS20J6TQ · 3 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m

WS20J6TQ · 5 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m

WS20J6TQ · 10 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m

WS20J6TQ · 20 m

Description

OPT-LSS1826-W is a line light from the OPT-LSS series by OPT. Key figures according to the manufacturer: housing length 1826 mm, light color white, power consumption 722.4 W, rated current 30.1 A, fan cooling, connector WS20K6Z.

The OPT-LSS series is OPT's high-power line light for line scan cameras. For the series the manufacturer states up to 2000 klx at 50 mm working distance (measured on four models, guide values according to the manufacturer). This is necessary because a line scan camera exposes each image line for only fractions of a second. The small divergence angle keeps the light concentrated even over larger distances.
