Line light OPT-LSS132-R

Manufacturer part number: OPT-LSS132-R

Series: OPT-LSS-Serie (Zeilenbeleuchtungen sehr hoher Intensität)

Illuminated area: 112 mm?
Light color: Red
Cooling: Fan

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LSS132-R
Color	red
Current	1.4 A
Power	33.6 W
Dimensions (L x W x H)	132 × 49 × 81.5 mm
Product series	OPT-LSS (high intensity)
Beam characteristic	Highly directional
Illuminated area	112 mm
Cooling	Fan
Connection	ZQ GX16M-6A
Cable length	1000 ± 20 mm
Min. bending radius of the cable	40 mm
Housing length	132 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

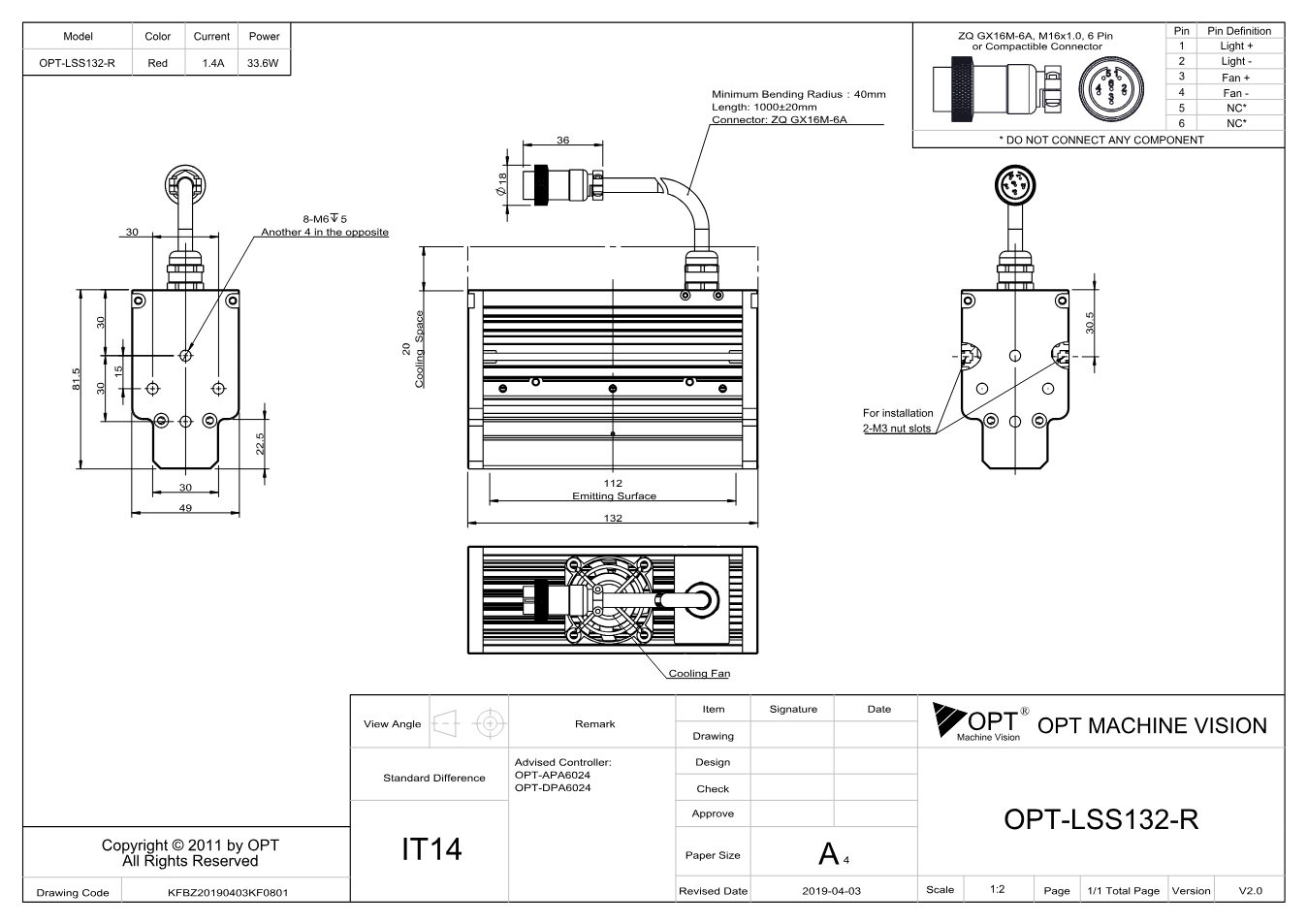

Dimensional drawing
