OPT
Line light OPT-LSF2320-W
Manufacturer part number: OPT-LSF2320-W
Series: OPT-LSF-Serie (Zeilenbeleuchtungen für lange Arbeitsabstände)
- Illuminated area
- 2300 mm?
- Light color
- White
- Cooling
- Water cooling
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSF2320-W |
|---|---|
| Color | White (manufacturer states blue) |
| Current | 19.6 A |
| Power | 470.4 W |
| Channel | B |
| Dimensions (L x W x H) | 2320 × 103.4 × 300.5 mm |
| Product series | OPT-LSF (long working distance) |
| Illuminated area | 2300 mm |
| Cooling | Water cooling |
| Connection | WS20J6TQ |
| Cable length | 1000 ± 20 mm |
| Housing length | 2320 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

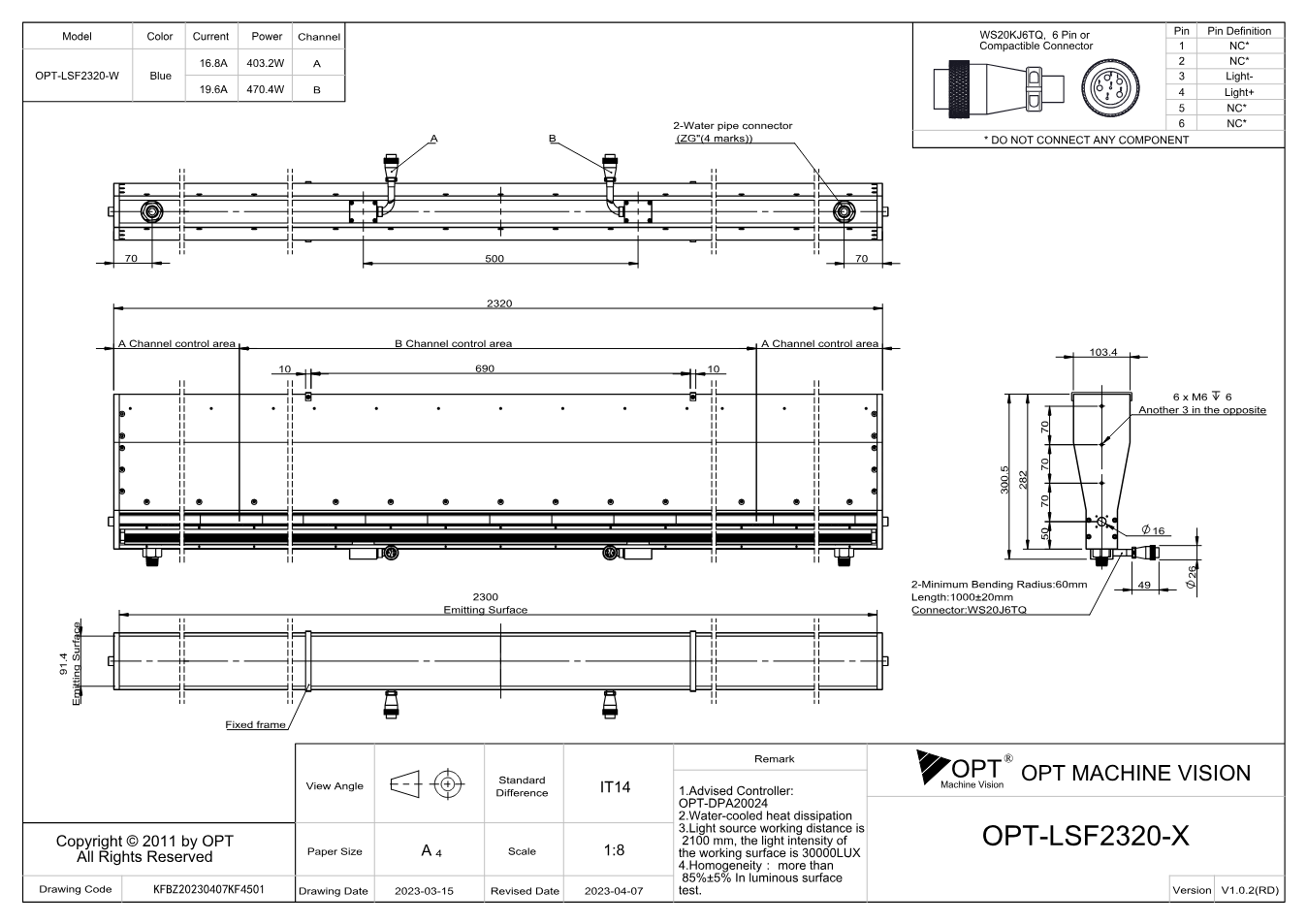

Dimensional drawing
Documents
Accessories
Beleuchtungskabel(9)
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
OPT
Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m
WS20J6TQ · 20 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX1M-6P-S-20A, 1 m
WS20J6TQ · 1 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX2M-6P-S-20A, 2 m
WS20J6TQ · 2 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX3M-6P-S-20A, 3 m
WS20J6TQ · 3 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX5M-6P-S-20A, 5 m
WS20J6TQ · 5 m
OPT
Lichtkabel 6-polig, 20 A OPT-DGYX10M-6P-S-20A, 10 m
WS20J6TQ · 10 m
Description
OPT-LSF2320-W is a line light from the OPT-LSF series by OPT. Key figures according to the manufacturer: illumination range 2300 mm at 2320 mm housing length, light color white, power consumption 470.4 W, rated current 19.6 A, water cooling, connector WS20J6TQ.
OPT lists the series as “line lights for long working distances”.
