Line light OPT-LSE344-R
Manufacturer part number: OPT-LSE344-R
Series: OPT-LSE-Serie (schmale Linienbeleuchtungen)
- Illuminated area
- 326 mm?
- Light color
- Red
- Cooling
- Fan
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-LSE344-R |
|---|---|
| Color | red |
| Current | 3 A |
| Power | 72 W |
| Dimensions (L x W x H) | 344 × 30 × 130 mm |
| Product series | OPT-LSE (schmalstrahlig) |
| Beam characteristic | Narrow beam |
| Light outlet width | < 0.5 mm |
| Divergence angle | 0.5° |
| Illuminated area | 326 mm |
| Cooling | Fan |
| Connection | ZQ GX16M-6A |
| Cable length | 1000 ± 20 mm |
| Min. bending radius of the cable | 40 mm |
| Housing length | 344 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

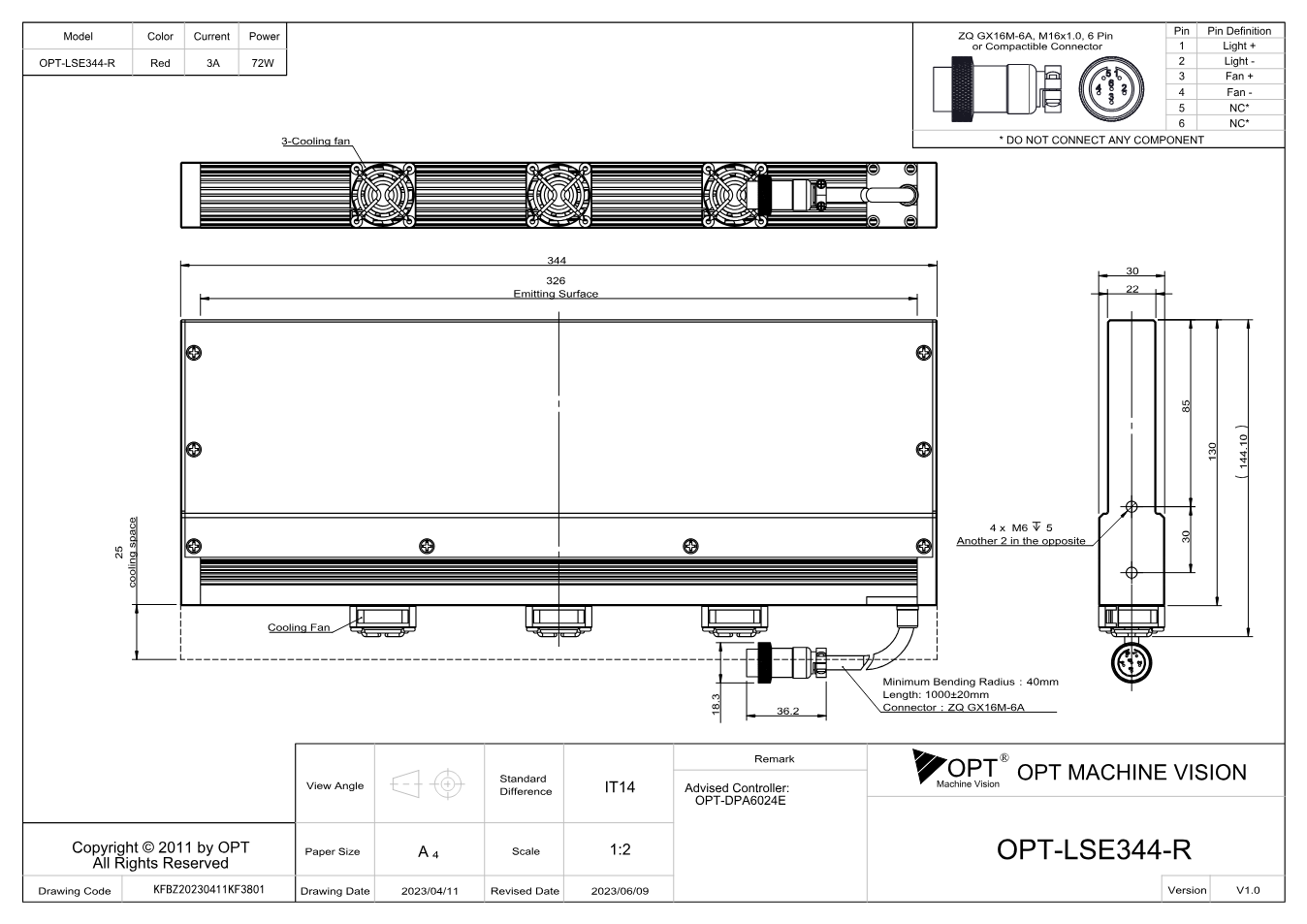

Dimensional drawing
Documents
- Download datasheet
OPT-LSE-Serie (schmale Linienbeleuchtungen): Serienbroschüre OPT (EN)
Datasheet · EN · 2 MB
- Download
Maßzeichnung OPT-LSE344 (V1.0) (PDF)
Technical drawing · EN · 300 KB
Accessories
Beleuchtungskabel(9)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
Description
OPT-LSE344-R is a line light from the OPT-LSE series by OPT. Key figures according to the manufacturer: illumination range 326 mm at 344 mm housing length, light color red, power consumption 72 W, rated current 3 A, fan cooling, connector ZQ GX16M-6A.
The OPT-LSE series produces a narrowly confined light line with a narrow beam angle. The light stays where it is needed and does not scatter into neighboring areas. This helps when several inspection stations stand close together.
