Line light OPT-LSA992-R

Manufacturer part number: OPT-LSA992-R

Series: OPT-LSA-Serie (Zeilenbeleuchtungen hoher Intensität)

Illuminated area: 974 mm?
Light color: Red
Cooling: Fan

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LSA992-R
Color	red
Current	27 A
Power	648 W
Dimensions (L x W x H)	992 × 50 × 126 mm
Product series	OPT-LSA (high intensity)
Beam characteristic	Highly directional
Illuminated area	974 mm
Cooling	Fan
Connection	WS20J6TQ
Cable length	1000 ± 20 mm
Min. bending radius of the cable	60 mm
Housing length	992 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

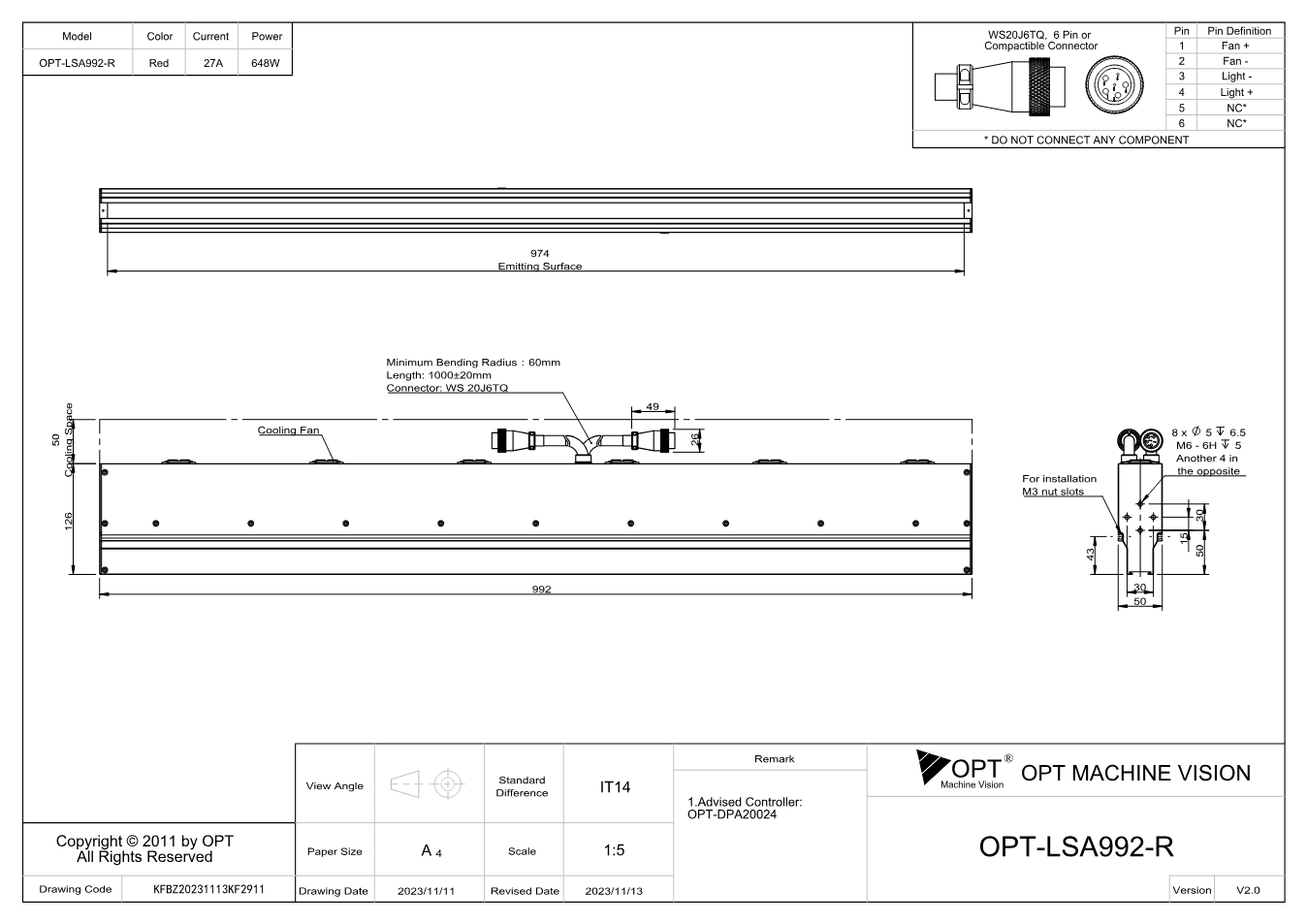

Dimensional drawing

Documents

OPT-LSA-Serie (Zeilenbeleuchtungen hoher Intensität): Serienbroschüre OPT (EN)
Datasheet · EN · 3 MB
Download datasheet
Maßzeichnung OPT-LSA992 (V2.0) (PDF)
Technical drawing · EN · 256 KB
Download
Maßzeichnung OPT-LSA992 (V2.0U) (PDF)
Technical drawing · EN · 257 KB
Download

Accessories

Beleuchtungskabel(9)

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX3M-6P-S-20A, 3 m

WS20J6TQ · 3 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX5M-6P-S-20A, 5 m

WS20J6TQ · 5 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX10M-6P-S-20A, 10 m

WS20J6TQ · 10 m

OPT

Verlängerungskabel 6-polig, 20 A OPT-EX20M-6P-S-20A, 20 m

WS20J6TQ · 20 m

OPT

Lichtkabel 6-polig, 20 A OPT-DGYX1M-6P-S-20A, 1 m

WS20J6TQ · 1 m

OPT

Lichtkabel 6-polig, 20 A OPT-DGYX2M-6P-S-20A, 2 m

WS20J6TQ · 2 m

OPT

Lichtkabel 6-polig, 20 A OPT-DGYX3M-6P-S-20A, 3 m

WS20J6TQ · 3 m

OPT

Lichtkabel 6-polig, 20 A OPT-DGYX5M-6P-S-20A, 5 m

WS20J6TQ · 5 m

OPT

Lichtkabel 6-polig, 20 A OPT-DGYX10M-6P-S-20A, 10 m

WS20J6TQ · 10 m

Description

OPT-LSA992-R is a line light from the OPT-LSA series by OPT. Key figures according to the manufacturer: illumination range 974 mm at 992 mm housing length, light color red, power consumption 648 W, rated current 27 A, fan cooling, connector WS20J6TQ.

The OPT-LSA series is a high-power line light for fast-running webs. For the series the manufacturer states up to 5000 klx at 50 mm working distance (measured on two models, guide values according to the manufacturer).
