Tunnel light OPT-LIU500-R

Manufacturer part number: OPT-LIU500-R

Series: OPT-LIU-Serie (Tunnelbeleuchtungen)

Tunnel type: Vault light
Light color: Red
Connection: ZQ GX16M-6A

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LIU500-R
Color	red
Current	3.2 A
Power	76.8 W
Channel	A/B
Dimensions (L x W x H)	500 × 146 × 71.5 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

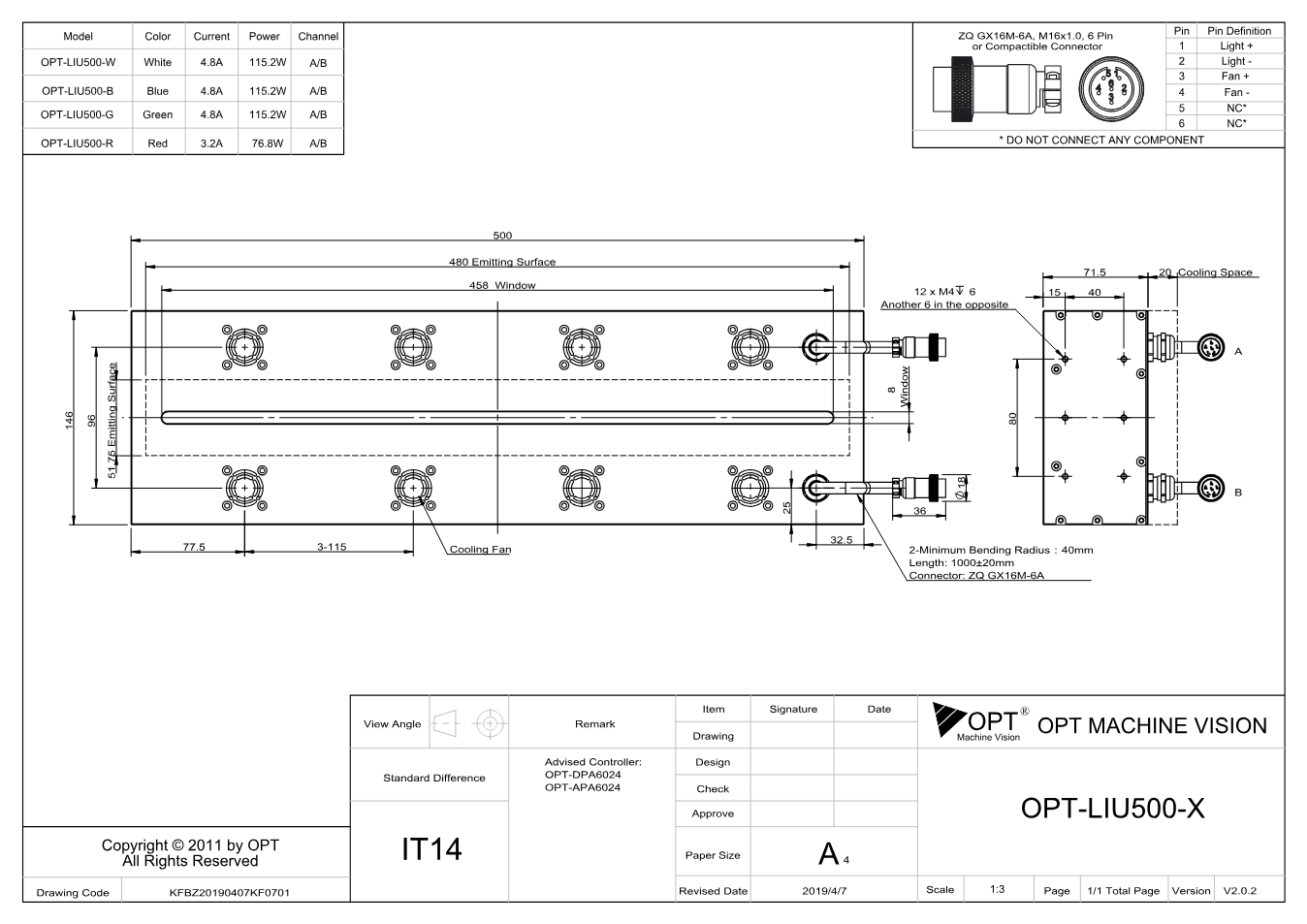

Dimensional drawing

Documents

OPT-LIU-Serie (Tunnelbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2 MB
Download datasheet
Maßzeichnung OPT-LIU500 (PDF)
Technical drawing · EN · 218 KB
Download

Accessories

Beleuchtungskabel(9)

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m

ZQ GX16M-6A · 20 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m

ZQ GX16M-6A · 1 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m

ZQ GX16M-6A · 2 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

Description

OPT-LIU500-R designates, within the OPT-LIU series (tunnel lights) the product type “tunnel light“. Key figures are light color red, current consumption 3.2 A, power consumption 76.8 W.

Choosing a machine vision light is not only about color and power: the illuminated field, the mounting angle, the working distance and the way the light is driven matter just as much. The dimensional drawing is available both as an image and as a PDF.

Tell us your camera, your lens and your inspection task and we will check the combination and quote price and delivery time for the exact part number.
