OPT-LIU303-R Gewölbte Maschinenbeleuchtung von OPT

OPT

Tunnel light OPT-LIU303-R

Manufacturer part number: OPT-LIU303-R

Series: OPT-LIU-Serie (Tunnelbeleuchtungen)

Tunnel type: Vault light
Light color: Red
Controller required: Recommended
Connection: ZQ GX16M-6B

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-LIU303-R
Color	Red
Current	8 A
Power	192 W
Channel	2
Dimensions (L x W x H)	303 × 222.2 × 79 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

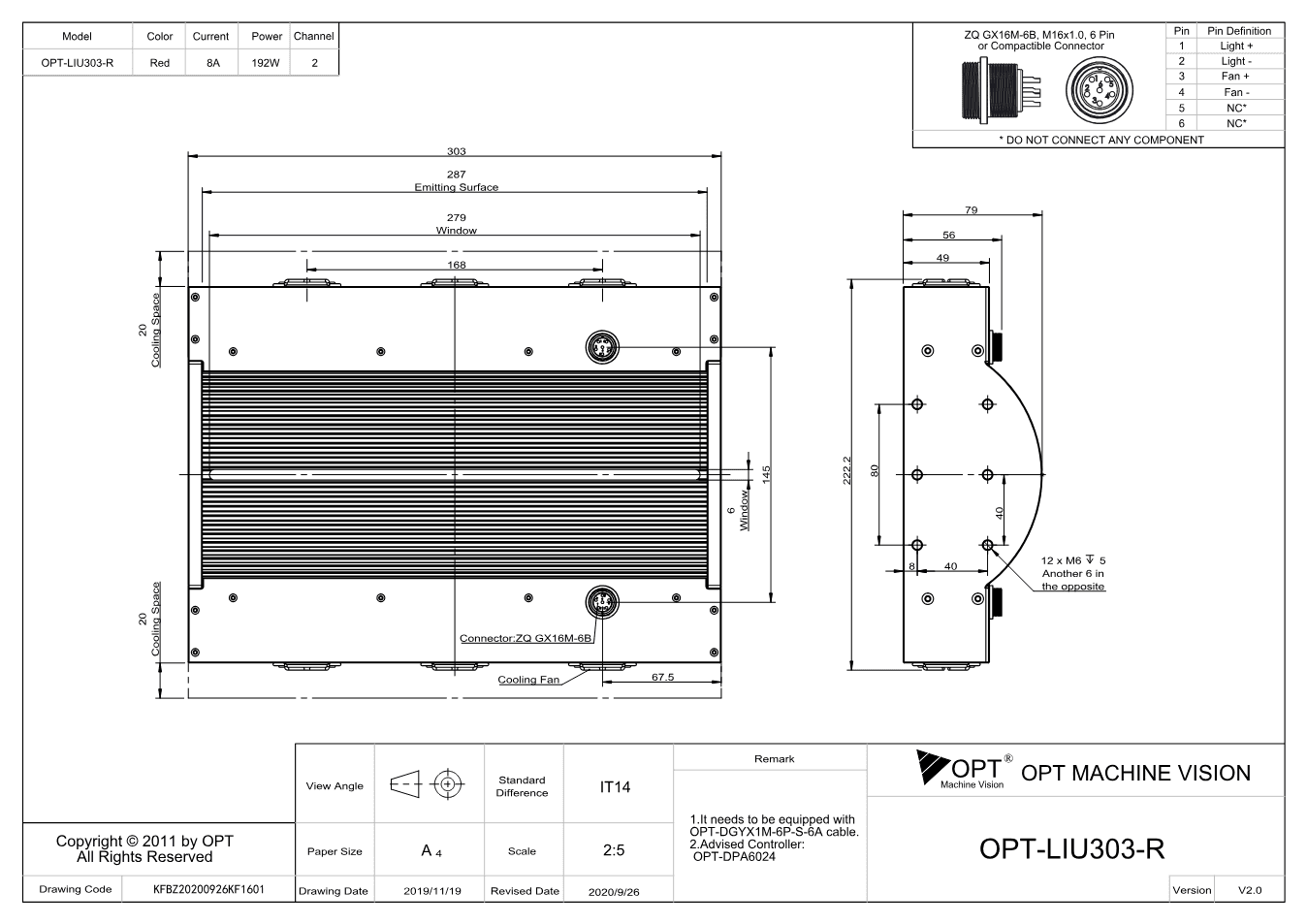

Dimensional drawing

Documents

OPT-LIU-Serie (Tunnelbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2 MB
Download datasheet
Maßzeichnung OPT-LIU303 (V2.0) (PDF)
Technical drawing · EN · 123 KB
Download

Accessories

Beleuchtungskabel(4)

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m

ZQ GX16M-6A · 20 m

Description

OPT-LIU303-R belongs to the OPT-LIU series by OPT - tunnel light. light color: red, power consumption: 8.0A/192 W and weight: 2 kg.

The OPT-LIU series is a tunnel or vault light: the part is enclosed by a curved, diffusing surface and is thereby lit uniformly from many directions. Irregular and shiny surfaces appear calm, without disturbing highlights.

Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
