Ring light MV-LRSS-H-300-W

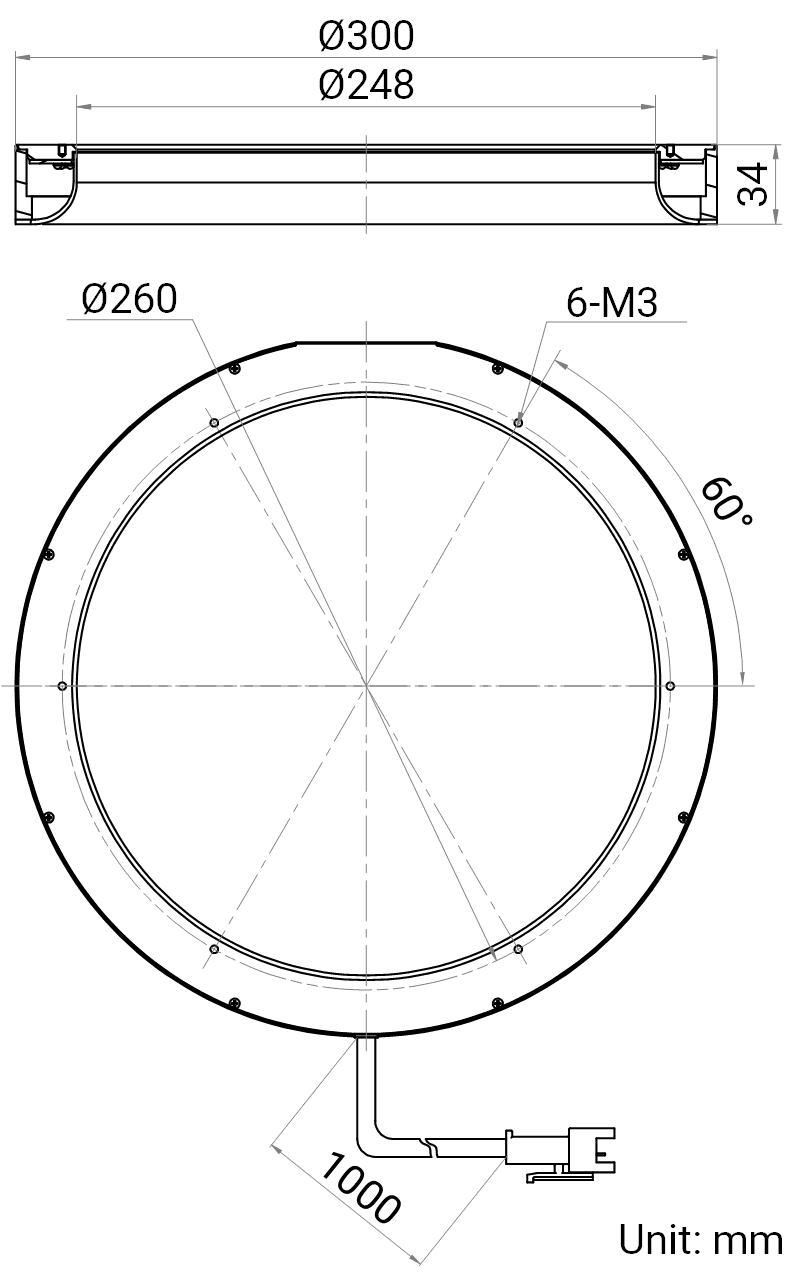

The MV-LRSS-H-300-W ring light from HIKROBOT is a ring light in white with an outer diameter of 300 mm and a 248 mm bore. The lens looks through the bore while the LEDs illuminate the part around the camera axis; depending on angle and working distance this gives low-shadow front lighting or flat, edge-emphasizing illumination.

Technical data

The emitting ring has a diameter of 286 mm. The recommended working distance ranges from 60 mm to 120 mm; at a distance of 100 mm the light reaches an illuminance of at least 20,000 lux at the center. The white light has a color temperature of 6000 K to 7000 K. The LEDs are arranged in a single row. A PMMA diffuser plate is built in. Power consumption is 30.5 W, the connection is an SMR-03V-B connector on a 1 m cable. The housing is 34 mm high and weighs 870 g.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 60 °C in storage, each at 20 % to 90 % relative humidity without condensation.

Applications and selection

Ring lights are the most common form of front lighting: for surface inspection, reading codes and text, presence and position checks of components. The lens has to fit through the bore (248 mm here). The MV-LRSS-H series comes with outer diameters from 80 mm to 300 mm and in white. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
