Falcon

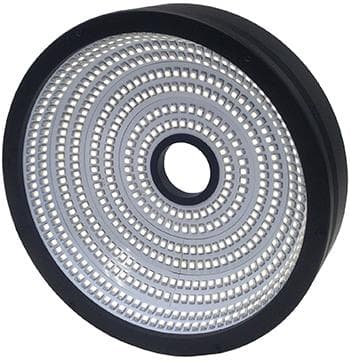

Multi-angled-Ring light FIBS-Si170-8-W
Manufacturer part number: FIBS-Si170-8-W
Series: FIBS-170-8
- Lens opening / inner diameter
- Ø 30 mm
- Outer diameter
- Ø 170 mm
- Light color
- White
- Ring design / angle of incidence
- Multi-angle / AOI
- Operating mode / controller required
- Strobe, Controller recommended
- Recommended working distance
- 1 – 40 mm
- Connection
- JST SMR-03V
- Supply voltage / power consumption
- 24 V, 39.84 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | FIBS-Si170-8-W |
|---|---|
| Type | Ring light |
| Version | Multiwinkel |
| Color | White |
| Size | Ø 170 × 50 mm |
| Illumination Surface | Ø 150 mm |
| Illumination Inside Dimension | 30 mm |
| FOV | Ø 30 mm |
| Working Distance | 1 – 40 mm |
| Operating Voltage | 24 V |
| Power Consumption | 39.84 W |
| Current | 1.66 A |
| Ripple Voltage | ≤ Vs ± 5 % |
| Reverse Battery Protection | Yes |
| Total Number of LED | 588 |
| LED Package | SMD |
| LED Life Span Continous | 20000 hours |
| LED Life Span Strobe | approx. > 50,000 hours (to 50 % remaining intensity at 25 °C ambient temperature) |
| Eye safety | Exempt group |
| Housing | Aluminum |
| Weight | 1388 g |
| Connector | JST SMR-03V |
| Connector Pin | Pin 1: +; Pin 2: not connected; Pin 3: - |
| Cable | 450 mm |
| Operating Condition | 0–35 °C, 20–85 % relative humidity |
| Operating Temperature | after 60 minutes approx. 49 °C (if all L1-L8 turn "ON") |
| Cooling Method | Mounting on a large machine part for heat dissipation |
| Ring design | Multi-angle / AOI |
| Operating mode | Strobe |
| Controller required | Recommended |
| Max. pulse duration | 10 ms |
| Max. duty cycle | 0-10 % |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet FIBS-Si170-8-W
Datasheet · EN · 275 KB
Description
FIBS-Si170-8-W belongs to the FIBS-170-8 series by Falcon Illumination. The light emits white light. The manufacturer states a working distance of 1 - 40 mm. The emitting surface measures Ø 150 mm. The outer dimensions are Ø 170 × 50 mm.
A multi-angle ring light combines several light rings with different beam angles in one housing. Each ring can be switched separately, so bright field and dark field can be combined at the same station without rebuilding it - for parts whose markings, contour and surface defects are inspected in a single pass.
The light runs on 24 V and draws 39.84 W, 588 LEDs of package type SMD are fitted, the connection is JST SMR-03V with 450 mm cable and the housing is aluminum.
Operating the rings separately requires a light controller with a matching number of channels. The data sheet and the dimensional drawing are in the download area. We are glad to advise you on matching light, lens and light controller. Just ask for price and delivery time.
