di-soric
Ring light BE-R30-G1-K-BS-DIF
Manufacturer part number: BE-R30-G1-K-BS-DIF
Series: BE-R30
- Lens opening / inner diameter
- Ø 30 mm
- Outer diameter
- Ø 69 mm
- Light color
- Red (diffuse), 625 nm
- Ring design / angle of incidence
- Full ring
- Operating mode / controller required
- Continuous
- Connection
- Pigtail, 0.3 m, M12, 3-pin
- Supply voltage / power consumption
- 24 V, 5.1 W
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-R30-G1-K-BS-DIF |
|---|---|
| Elektrische Merkmale: Betriebsspannung | 24 V DC (Supply Class 2) |
| Elektrische Merkmale: Leistung | 5.1 W (24 V DC) |
| Elektrische Merkmale: Isolationsspannungsfestigkeit | 500 V |
| Mechanische Merkmale: Durchmesser | Ø 30 / Ø 69 mm (Durchmesser) |
| Mechanische Merkmale: Höhe | 20 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | PUR (cable) PMMA, diffus (Schutzoptik) |
| Zertifizierungen, Zulassungen: Schutzklasse | III, operation on safety extra-low voltage |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Bauform | Ring light |
| Allgemeine Merkmale: Besonderheiten | Modernste High-Power-LEDs |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | Red (diffuse) |
| Optische Daten: Wellenlänge | 625 nm |
| Optische Daten: Abstrahlwinkel FWHM | 80° |
| Optische Daten: Beleuchtungsstärke | 6.30 kLx (100.0 mm) 2.00 kLx (200.0 mm) 0.900 kLx (300.0 mm) |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Pigtail, 0.3 m, M12, 3-pin |
| Zubehör: Anschlusskabel | VK … |
| Ring design | Full ring |
| Lens opening / inner diameter | Ø 30 mm |
| Outer diameter | Ø 69 mm |
| Operating mode | Continuous |
| Light angle (manufacturer) | 80° |
| Angle reference | Manufacturer definition |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

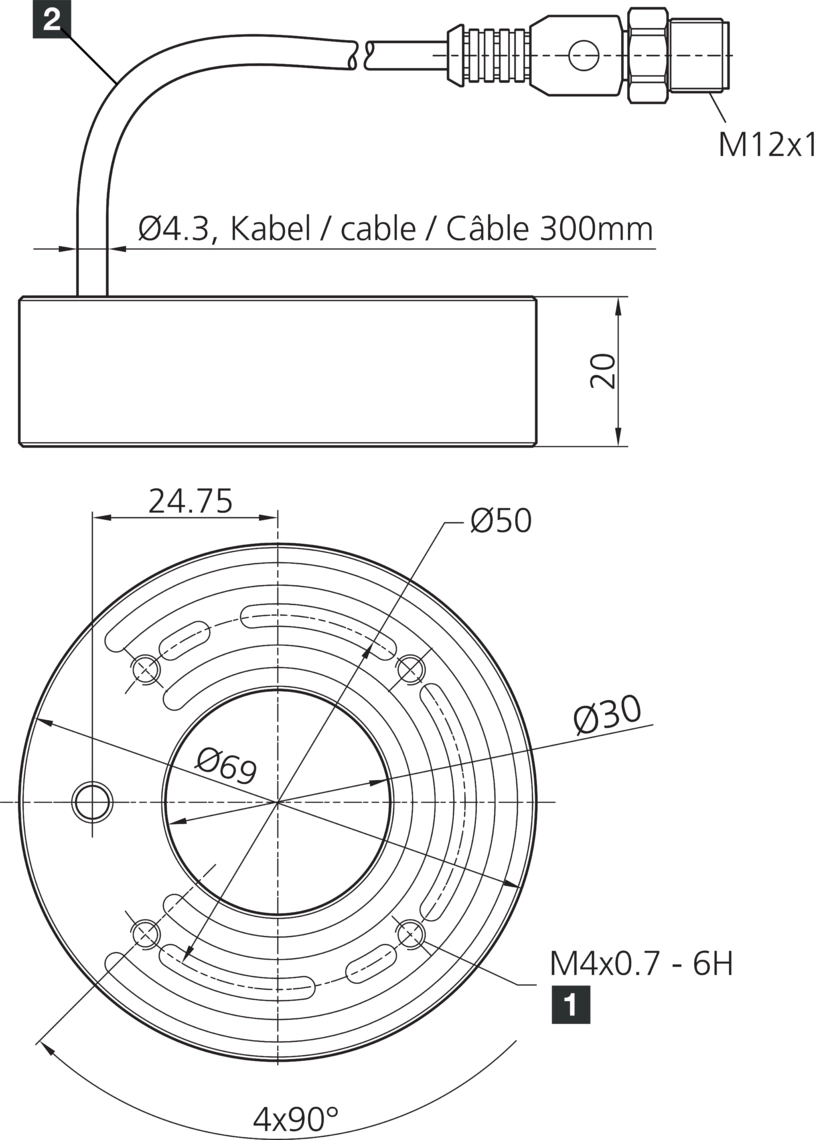

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-R30-G1-K-BS-DIF
Datasheet · DE · 1 MB
- Download
BE-R30-xx-K-xx (IGS)
Technical drawing · DE · 289 KB
- Download
BE-R30-xx-K-xx (STP)
Technical drawing · DE · 93 KB
Accessories
Power / I/O cables(8)
di-soric
Strom- / I/O-Kabel VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Description
ring lights with switchable continuous light are intended for operation from a 24 VDC-Spannungsquelle. They provide a constant light intensity across a wide voltage range and offer features such as trigger inversion and brightness adjustment. The data sheet and the CAD data are in the download area. We are glad to advise you on matching light, lens and light controller. Just ask for price and delivery time.
