di-soric
Ring light BE-R130-F1-K-CLR
Manufacturer part number: BE-R130-F1-K-CLR
Series: BE-R130
- Lens opening / inner diameter
- Ø 131 mm
- Outer diameter
- Ø 200 mm
- Light color
- Red (clear), 633 nm
- Ring design / angle of incidence
- Full ring
- Connection
- Cable, 2.5 m (open end, operation only with a flash controller)
- Supply voltage / power consumption
- Not a constant-voltage supply
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | BE-R130-F1-K-CLR |
|---|---|
| Elektrische Merkmale: Leistungsaufnahme (im Puls/max.) | 230 W |
| Elektrische Merkmale: Bestromungsfaktor (im Puls/max.) | 8 |
| Elektrische Merkmale: Bestromung (im Puls/max.) | 12000 mA |
| Elektrische Merkmale: Betriebsspannung | Not a constant-voltage supply |
| Elektrische Merkmale: Verpolschutz | Yes |
| Elektrische Merkmale: Isolationsspannungsfestigkeit | 500 V |
| Mechanische Merkmale: Durchmesser | Ø 131 / Ø 200 mm (Durchmesser) |
| Mechanische Merkmale: Höhe | 20 mm |
| Mechanische Merkmale: Gehäusematerial | Aluminum (black, anodized) |
| Mechanische Merkmale: Material | PUR (cable) PMMA, klar (Schutzoptik) |
| Zertifizierungen, Zulassungen: Risikogruppe (DIN EN 62471) | Exempt group |
| Zertifizierungen, Zulassungen: Zulassungen | UL |
| Allgemeine Merkmale: Bauform | Ring light |
| Optische Daten: Lichtquelle | LED |
| Optische Daten: Farbe | Red (clear) |
| Optische Daten: Wellenlänge | 633 nm |
| Optische Daten: Abstrahlwinkel FWHM | 30° |
| Optische Daten: Beleuchtungsstärke | 4.40 kLx (300.0 mm / 100 %) 17.6 kLx (300.0 mm / 400 %) 33.2 kLx (300.0 mm / 800 %) 3.00 kLx (500.0 mm / 100 %) 11.6 kLx (500.0 mm / 400 %) 22.1 kLx (500.0 mm / 800 %) |
| Anzeige, Bedienung: Regelung | Blitzbar per Flash-Controller |
| Umgebungsbedingungen: Schock-/Schwingbeanspruchung | 30 g, 11 ms / 10 … 55 Hz, 1.0 mm |
| Umgebungsbedingungen: Umgebungstemperatur Betrieb | 0 … +40 °C |
| Umgebungsbedingungen: Schutzart | IP 67 |
| Elektrischer Anschluss: Anschluss | Cable, 2.5 m (open end, operation only with a flash controller) |
| Ring design | Full ring |
| Lens opening / inner diameter | Ø 131 mm |
| Outer diameter | Ø 200 mm |
| Light angle (manufacturer) | 30° |
| Diffuser | not stated in the datasheet |
| Angle reference | Manufacturer definition |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

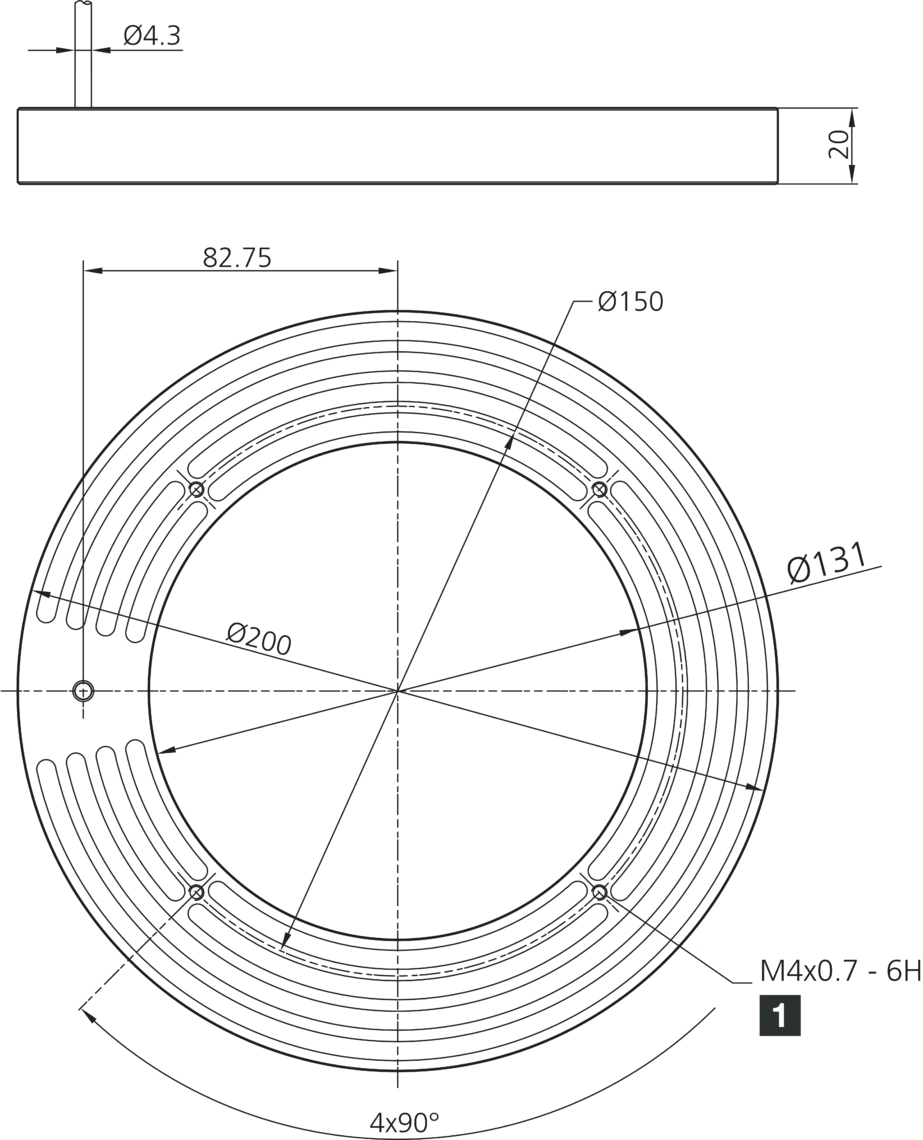

Dimensional drawing
Documents
- Download datasheet
Datasheet BE-R130-F1-K-CLR
Datasheet · DE · 2 MB
- Download
BE-R130-Fx-K-xxx (IGS)
Technical drawing · DE · 368 KB
- Download
BE-R130-Fx-K-xxx (STP)
Technical drawing · DE · 129 KB
Accessories
Power / I/O cables(8)
di-soric
Strom- / I/O-Kabel VKHM-W-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-W-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-W-154
Buchse, M12, 4-pin, A-coded · 15000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-2.54
Buchse, M12, 4-pin, A-coded · 2500 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-54
Buchse, M12, 4-pin, A-coded · 5000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-104
Buchse, M12, 4-pin, A-coded · 10000 mm
di-soric
Strom- / I/O-Kabel VKHM-Z-154
Buchse, M12, 4-pin, A-coded · 15000 mm
Description
Externally strobed ring lights are intended for operation from a constant-current source or a strobe controller. They are the right choice for very short camera exposure times and damit for very fast processes. The data sheet and the CAD data are in the download area. We are glad to advise you on matching light, lens and light controller. Just ask for price and delivery time.
