OPT
Pattern projector OPT-PCP290160-W
Manufacturer part number: OPT-PCP290160-W
Series: OPT-PCP-Serie (programmierbare Musterbeleuchtungen)
- Light color
- White
- Power consumption
- 96 W
- Supply voltage
- 24 V
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-PCP290160-W |
|---|---|
| Color | white |
| Voltage | 24 V |
| Power | 96 W |
| Dimensions (L x W x H) | 328 × 208 × 70 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

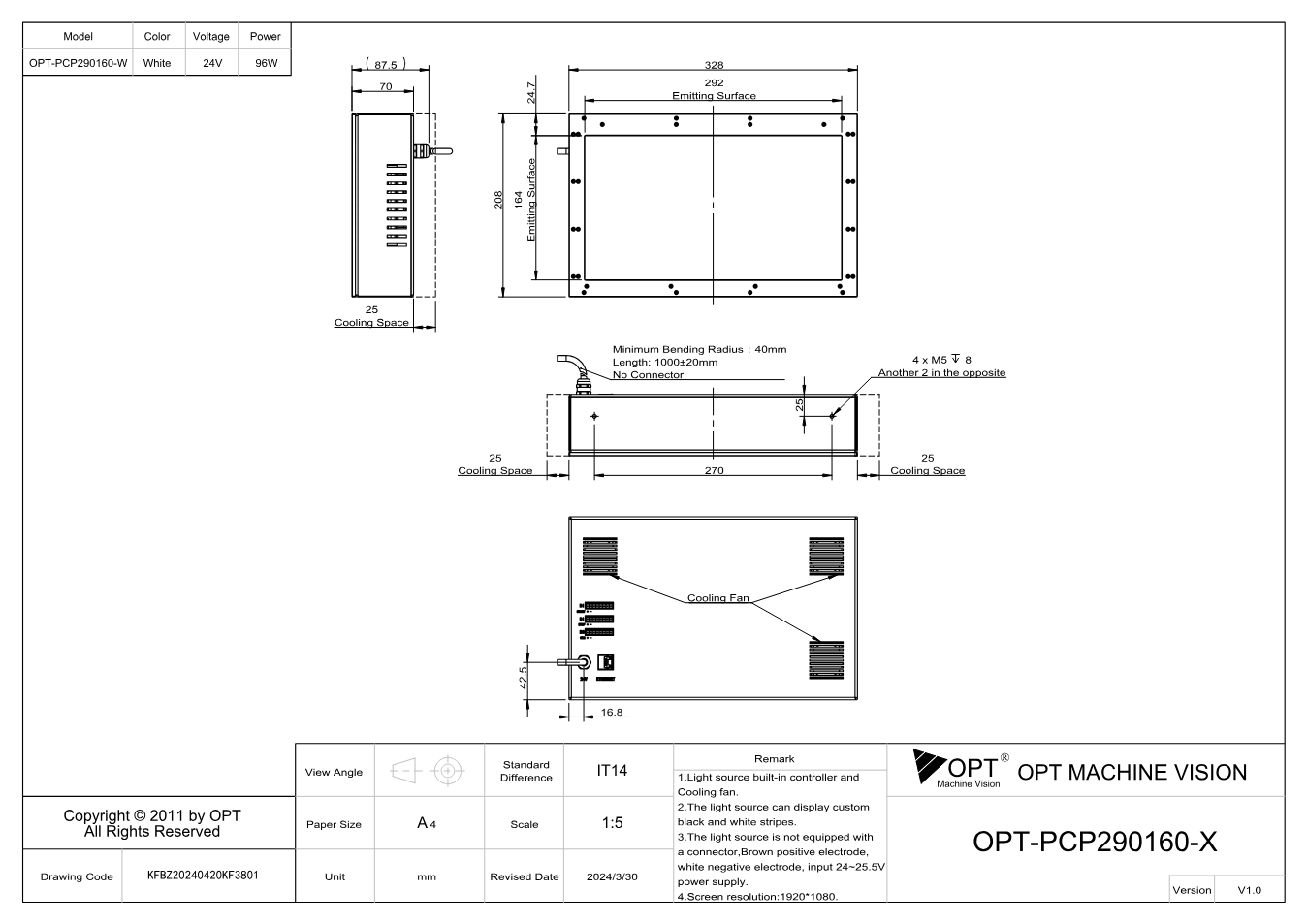

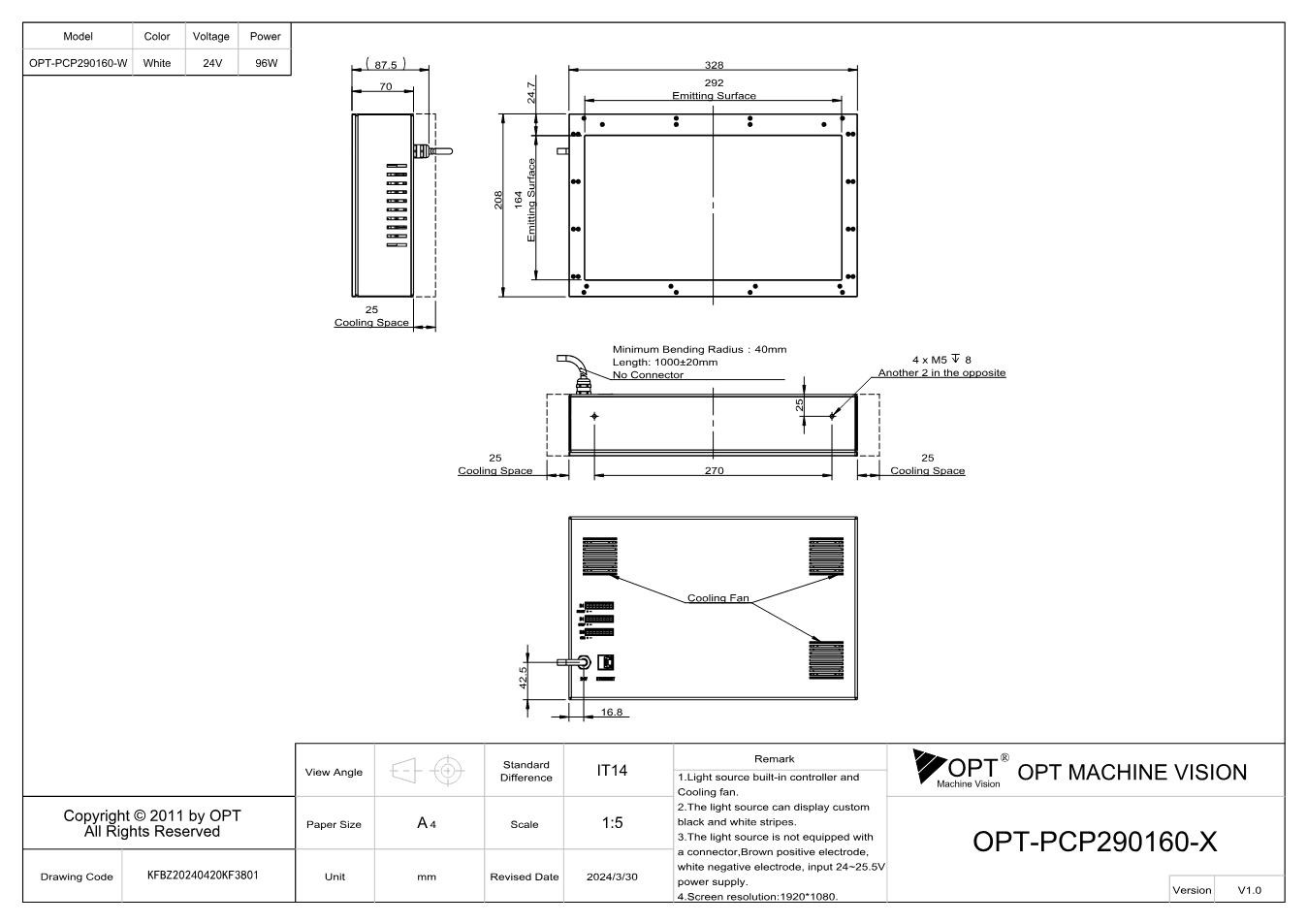

Dimensional drawing
Documents
- Download datasheet
OPT-PCP-Serie (programmierbare Musterbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2104 KB
- Download datasheet
OPT-PCP-Serie (programmierbare Musterbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 3209 KB
- Download
Maßzeichnung OPT-PCP290160 (V1.0) (PDF)
Technical drawing · EN · 189 KB
- Download
OPT-PCP Programmable Light User Manual (EN)
Manual · EN · 319 KB
Description
OPT-PCP290160-W belongs to the OPT-PCP series by OPT - programmierbare Musterbeleuchtung. light color: white, input voltage: 24 V and power consumption: 96 W.
The OPT-PCP series is a programmable stripe light source: the required patterns are already stored in the device. Because they do not have to be transferred via the interface at every change, the light switches faster and can be synchronized more precisely with the camera.
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
