Falcon

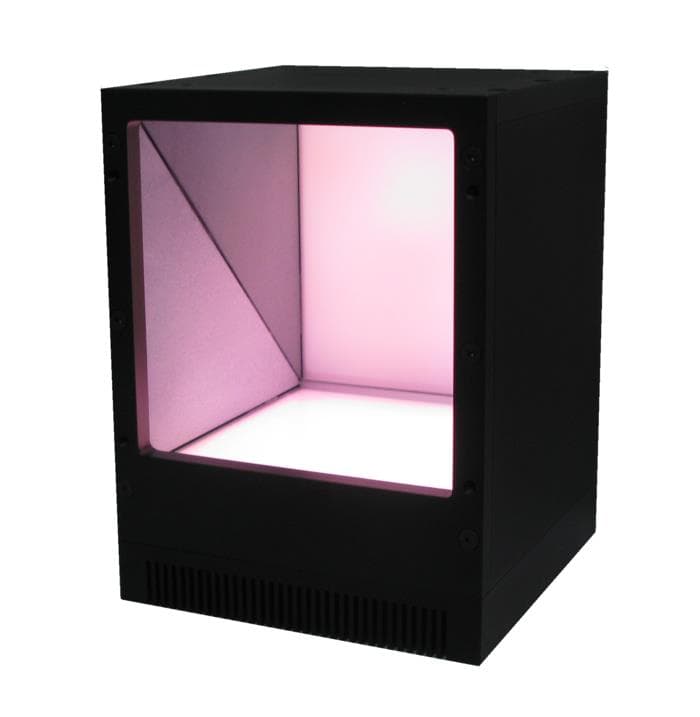

Coaxial light FLFV-Si100-RGB
Manufacturer part number: FLFV-Si100-RGB
Series: FLFV-100
- Coaxial class
- Standard?
- Field size
- Field of view (FOV) 100 × 100 mm?
- Recommended working distance
- 1 – 30 mm
- Light color
- RGB
- Operating mode
- Continuous and strobe
- Drive / supply
- 24 V, Konstantspannung or Konstantstrom
- Cooling
- Heat dissipation through mounting
- Connection
- JST SMR-03V
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | FLFV-Si100-RGB |
|---|---|
| Type | Coaxial light |
| Version | Standard |
| Color | RGB |
| Size | 157 × 118 × 116 mm |
| FOV | 100 × 100 mm |
| Working Distance | 1 – 30 mm |
| Operating Voltage | 24 V |
| Power Consumption | 31.20 W |
| Current | 1.3 A |
| Ripple Voltage | ≤ Vs ± 5 % |
| Reverse Battery Protection | Yes |
| Total Number of LED | 210 |
| LED Package | Each SMD-LED in RGB |
| LED Life Span Continous | 20000 hours |
| LED Life Span Strobe | approx. > 50,000 hours (to 50 % remaining intensity at 25 °C ambient temperature) |
| Eye safety | Exempt group |
| Ingress Protection | IP 30 |
| Housing | Aluminum |
| Weight | approx. 1735 g |
| Connector | JST SMR-03V |
| Connector Pin | Pin 1: +; Pin 2: not connected; Pin 3: - |
| Cable | 450 mm |
| Operating Condition | 0–35 °C, 20–85 % relative humidity |
| Operating Temperature | after 60 minutes approx. 57 °C |
| Cooling Method | Mounting on a machine part for heat dissipation |
| Drive | Konstantspannung or Konstantstrom |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet FLFV-Si100-RGB
Datasheet · EN · 220 KB
Description
The FLFV-Si100-RGB from Falcon is a coaxial light with RGB light. The working distance is 1 to 30 mm; supply voltage is 24 V. Power consumption is 31.2 W; connection is made through a JST SMR-03V connector. The attached cable is 450 mm long; the housing is made of aluminum. It weighs approx. 1735 g.
