Area light OPT-FLCA510360-B
Manufacturer part number: OPT-FLCA510360-B
Series: OPT-FLCA-Serie (kantenbeleuchtete Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 476 × 326 mm
- Light color
- Blue
- Drive / supply
- 24 V
- Connection
- ZQ GX16M-6A
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FLCA510360-B |
|---|---|
| Color | Blue |
| Current | 3.2 A |
| Power | 76.8 W |
| Recommended controller | OPT-DPA6024 |
| Stock Code | 11530083100 |
| Weight(KG) | 3.55 kg |
| Leuchtfläche | 476 × 326 mm |
| Versorgungsspannung | 24 V |
| Lighting type | Backlight |
| Light guidance / design | Edge-Lit |
| Controller required | Recommended |
| Connection | ZQ GX16M-6A |
| Min. bending radius of the cable | 20 mm |
| Housing length | 510 mm |
| Housing width | 360 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

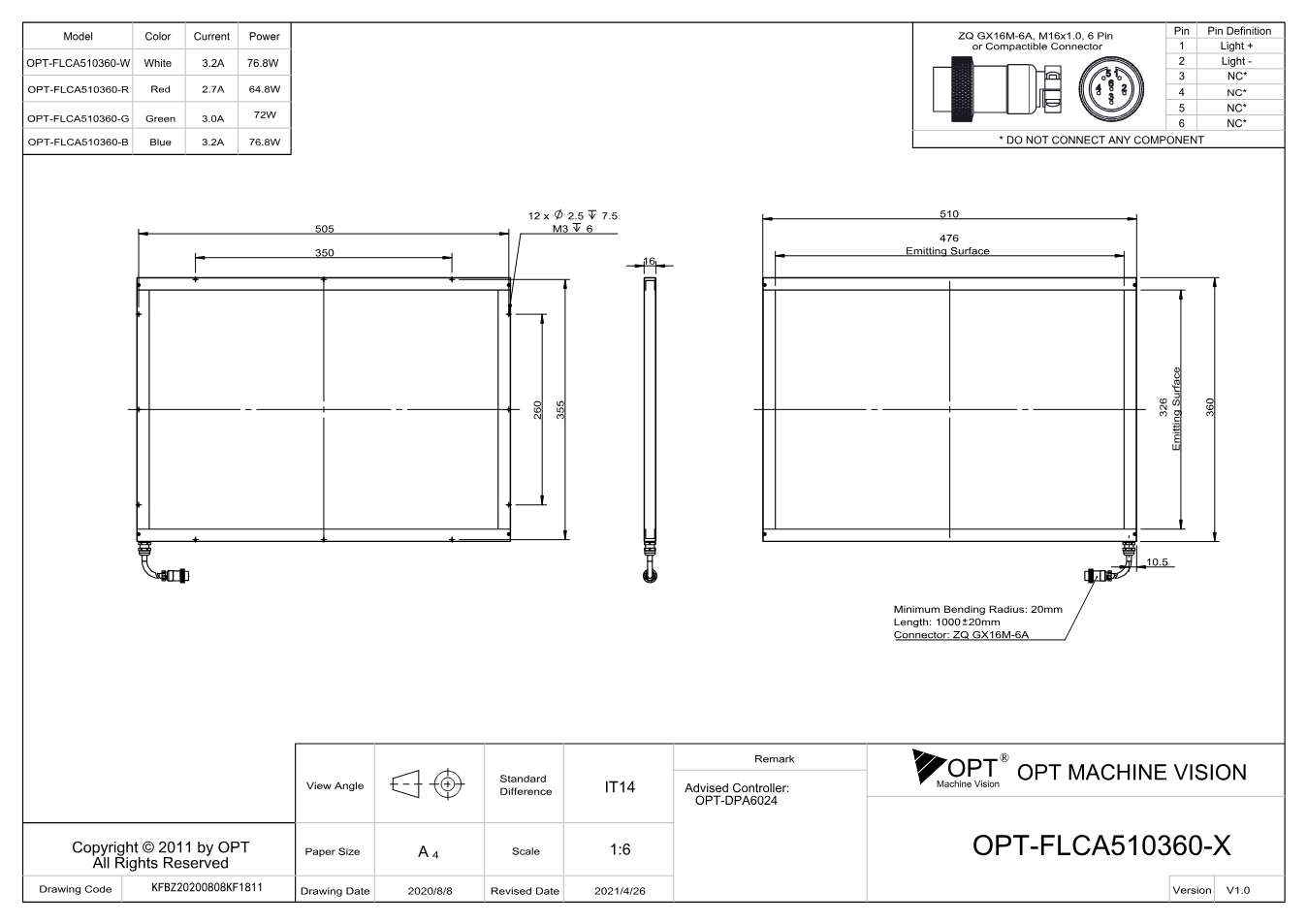

Dimensional drawing
Documents
- Download datasheet
OPT-FLCA-Serie (kantenbeleuchtete Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2245 KB
- Download datasheet
OPT-FLCA-Serie (kantenbeleuchtete Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 938 KB
- Download
Maßzeichnung OPT-FLCA510360 (V1.0) (PDF)
Technical drawing · EN · 150 KB
Accessories
Beleuchtungskabel(9)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
Description
OPT-FLCA510360-B belongs to the OPT-FLCA series by OPT - edge-lit backlight. light color: blue, power consumption: 76.8 W, rated current: 3.2 A, weight: 3.55 kg.
The OPT-FLCA series is the edge-lit backlight with an enlarged emitting surface. It keeps the slim form factor of the OPT-FLC series and is therefore suited to larger parts where space is tight.
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
