Area light OPT-FLCA410290K-R
Manufacturer part number: OPT-FLCA410290K-R
Series: OPT-FLCA-Serie (kantenbeleuchtete Hintergrundbeleuchtungen)
- Lighting type
- Backlight
- Emitting area
- 376 × 256 mm
- Camera aperture
- Ø 35 mm
- Light color
- Red
- Drive / supply
- 24 V
- Connection
- ZQ GX16M-6A
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | OPT-FLCA410290K-R |
|---|---|
| Color | Red |
| Current | 2.1 A |
| Power | 50.4 W |
| Recommended controller | OPT-DPA2024E |
| Stock Code | 11530006100 |
| Weight(KG) | 2.4 kg |
| Versorgungsspannung | 24 V |
| Leuchtfläche | 376 × 256 mm |
| Kameraöffnung | Ø 35 mm |
| Lighting type | Backlight |
| Controller required | Recommended |
| Connection | ZQ GX16M-6A |
| Min. bending radius of the cable | 20 mm |
| Housing length | 410 mm |
| Housing width | 290 mm |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

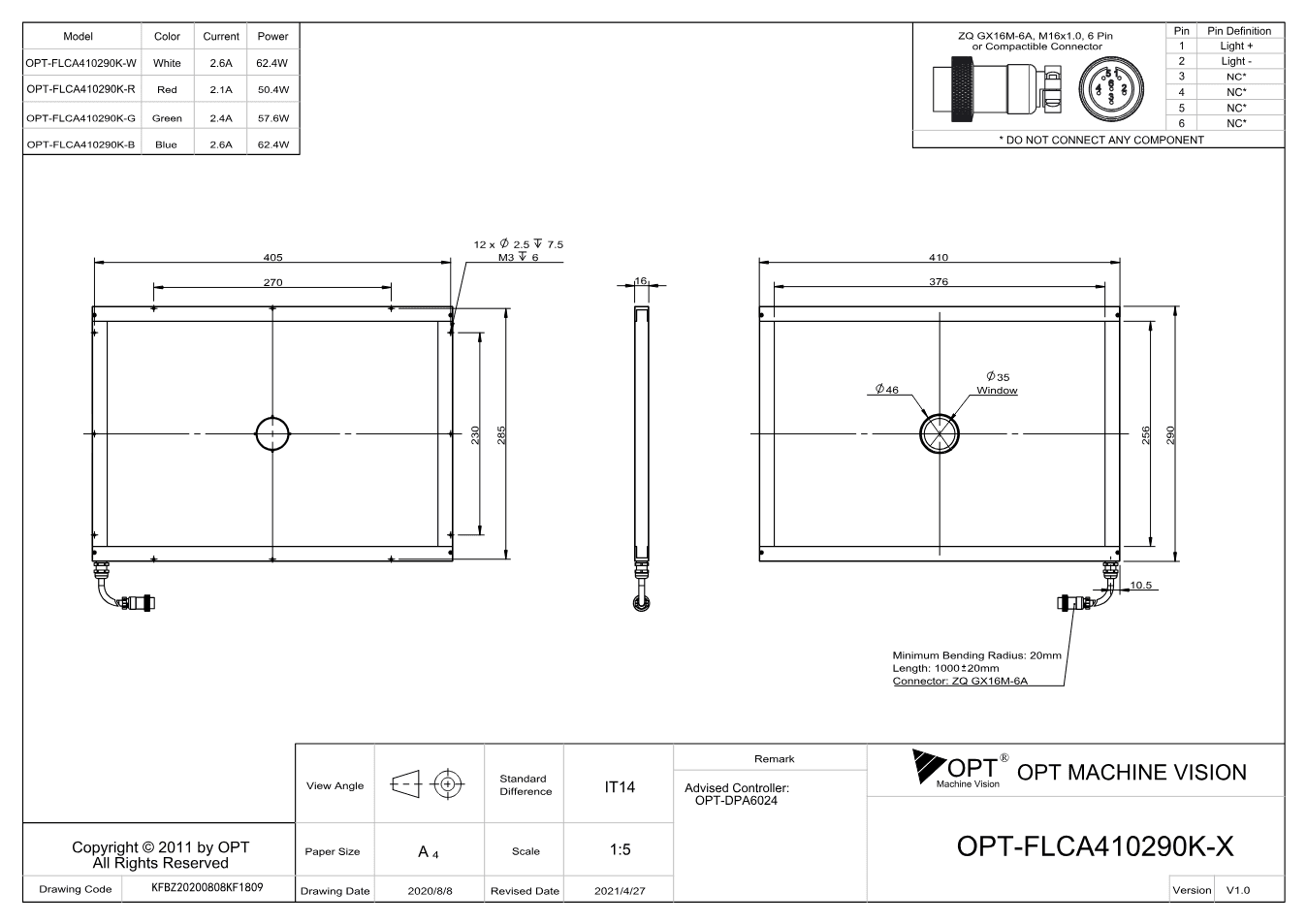

Dimensional drawing
Documents
- Download datasheet
OPT-FLCA-Serie (kantenbeleuchtete Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 2 MB
- Download datasheet
OPT-FLCA-Serie (kantenbeleuchtete Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 938 KB
- Download
Maßzeichnung OPT-FLCA410290K (V1.0) (PDF)
Technical drawing · EN · 155 KB
Accessories
Beleuchtungskabel(9)
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
OPT
Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m
ZQ GX16M-6A · 20 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m
ZQ GX16M-6A · 1 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX2M-6P-S-6A, 2 m
ZQ GX16M-6A · 2 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX3M-6P-S-6A, 3 m
ZQ GX16M-6A · 3 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX5M-6P-S-6A, 5 m
ZQ GX16M-6A · 5 m
OPT
Lichtkabel 6-polig, 6 A OPT-DGYX10M-6P-S-6A, 10 m
ZQ GX16M-6A · 10 m
Description
OPT-FLCA410290K-R belongs to the OPT-FLCA-K / OPT-FLA-K series by OPT - backlight with center hole. light color: red, power consumption: 50.4 W, rated current: 2.1 A, weight: 2.4 kg.
The OPT-FLCA-K and OPT-FLA-K series are backlights with an opening in the center. Through this hole the camera looks at the part from behind, or a mechanism reaches through it - useful on rotary indexing tables and in coaxial setups.
Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
