OPT-FLA610570K-R Hintergrundbeleuchtung mit zentraler Öffnung von OPT

OPT

Area light OPT-FLA610570K-R

Manufacturer part number: OPT-FLA610570K-R

Series: OPT-FLA-Serie (direkte Hintergrundbeleuchtungen)

Lighting type: Backlight
Emitting area: 594 × 554 mm
Camera aperture: present
Light color: Red
Drive / supply: 24 V
Connection: ZQ GX16M-6B

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-FLA610570K-R
Color	Red
Current	9.0 A
Power	216 W
Channel	2
Standard light source cable	OPT-DGYX1M-6P-S-6 A
Recommended controller	OPT-DPA6024E
Stock Code	11400106100
Weight(KG)	6.2 kg
Rated Current	8.4 A
Leuchtfläche	594 × 554 mm
Versorgungsspannung	24 V
Lighting type	Backlight
Controller required	Recommended
Connection	ZQ GX16M-6B
Housing length	610 mm
Housing width	570 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

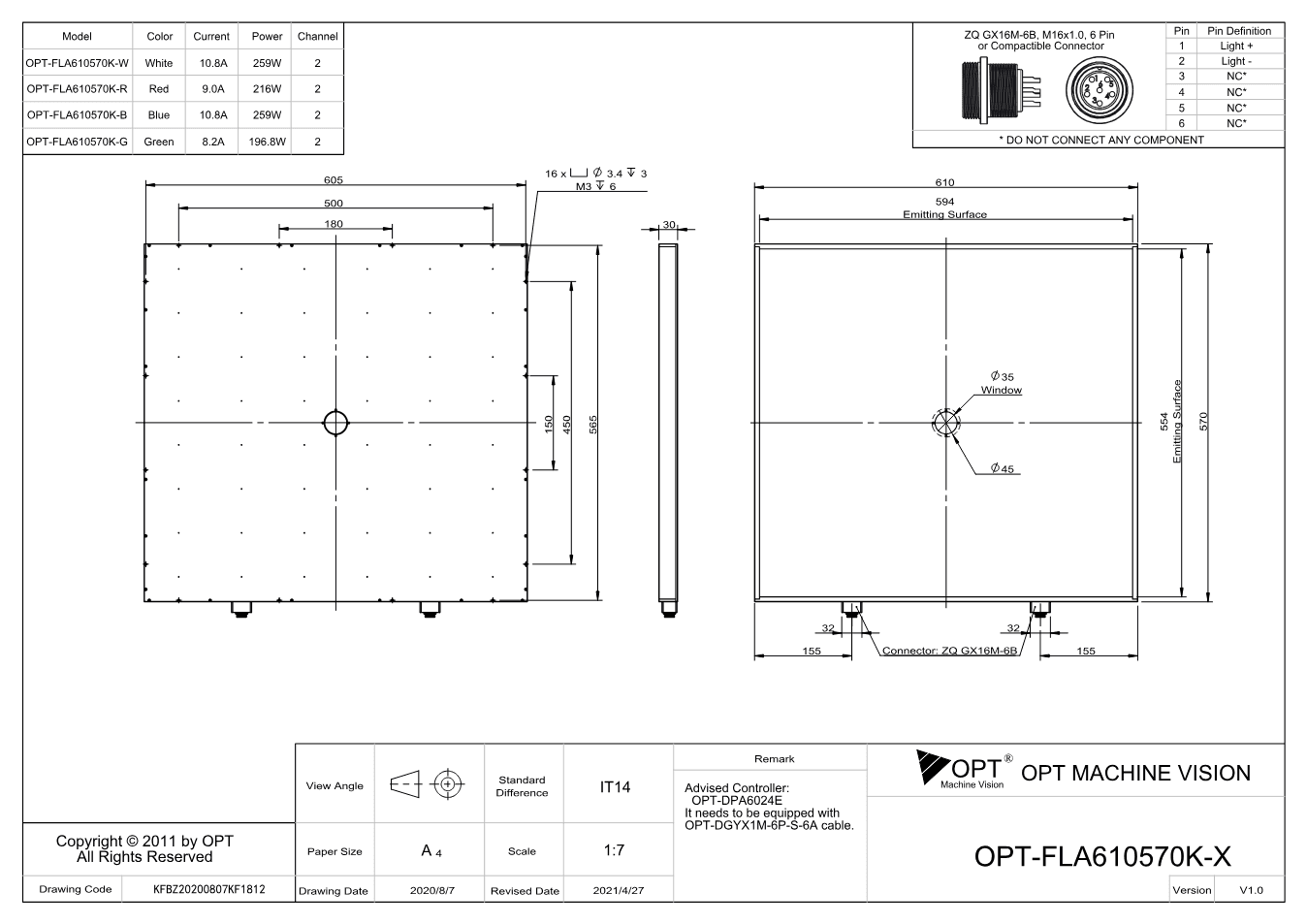

Dimensional drawing

Documents

OPT-FLA-Serie (direkte Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 869 KB
Download datasheet
Maßzeichnung OPT-FLA610570K (V1.0) (PDF)
Technical drawing · EN · 117 KB
Download

Accessories

Beleuchtungskabel(5)

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m

ZQ GX16M-6A · 20 m

OPT

Lichtkabel 6-polig, 6 A OPT-DGYX1M-6P-S-6A, 1 m

ZQ GX16M-6A · 1 m

Light controllers(1)

OPT

Lichtcontroller OPT-DPA6024E-2

Description

OPT-FLA610570K-R belongs to the OPT-FLCA-K / OPT-FLA-K series by OPT - backlight with center hole. light color: red, power consumption: 216 W, rated current: 8.4 A, weight: 6.2 kg.

The OPT-FLCA-K and OPT-FLA-K series are backlights with an opening in the center. Through this hole the camera looks at the part from behind, or a mechanism reaches through it - useful on rotary indexing tables and in coaxial setups.

Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
