OPT-FLA310220-R Direkte Flächen-Hintergrundbeleuchtung von OPT

OPT

Area light OPT-FLA310220-R

Manufacturer part number: OPT-FLA310220-R

Series: OPT-FLA-Serie (direkte Hintergrundbeleuchtungen)

Lighting type: Backlight
Emitting area: 294 × 204 mm
Light color: Red
Drive / supply: 24 V
Connection: ZQ GX16M-6B

Price and availability on request

Quantity

Not sure which model fits?

One of our staff will review your application and recommend the right configuration.

Have your application reviewed

Technical data

Manufacturer part number	OPT-FLA310220-R
Color	Red
Current	2.51 A
Power	60.2 W
Standard light source cable	light source.
Recommended controller	OPT-DPA2024E
Stock Code	11400059100
Weight(KG)	1.44 kg
Leuchtfläche	294 × 204 mm
Versorgungsspannung	24 V
Dimensions (L x W x H)	310 × 220 × 29 mm
Lighting type	Backlight
Light guidance / design	Direct-Lit
Controller required	Recommended
Connection	ZQ GX16M-6B
Housing length	330 mm
Housing width	220 mm

Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.

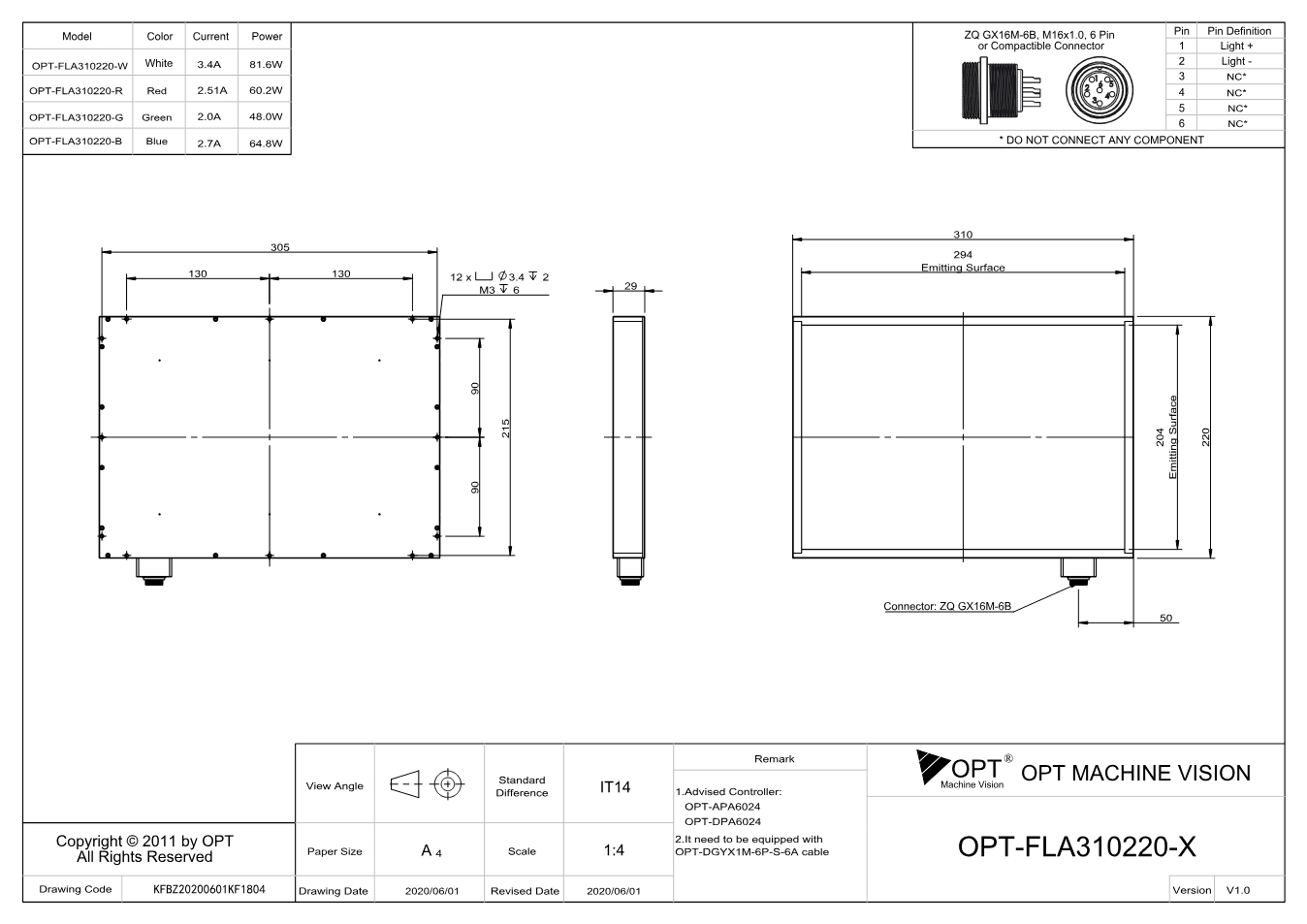

Dimensional drawing

Documents

OPT-FLA-Serie (direkte Hintergrundbeleuchtungen) - Serienbroschüre OPT (EN)
Datasheet · EN · 869 KB
Download datasheet
Maßzeichnung OPT-FLA310220 (V1.0) (PDF)
Technical drawing · EN · 109 KB
Download

Accessories

Beleuchtungskabel(4)

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX3M-6P-S-6A, 3 m

ZQ GX16M-6A · 3 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX5M-6P-S-6A, 5 m

ZQ GX16M-6A · 5 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX10M-6P-S-6A, 10 m

ZQ GX16M-6A · 10 m

OPT

Verlängerungskabel 6-polig, 6 A OPT-EX20M-6P-S-6A, 20 m

ZQ GX16M-6A · 20 m

Light controllers(3)

OPT

Lichtcontroller OPT-DPA2024E-4

OPT

Lichtcontroller OPT-DPA2024E-8

OPT

Lichtcontroller OPT-DPA2024E-16

Description

OPT-FLA310220-R belongs to the OPT-FLA series by OPT - backlight. light color: red, power consumption: 60.2 W, weight: 1.44 kg.

The OPT-FLA series is OPT's directly lit backlight for large emitting surfaces. OPT recommends it when parts fill entire fields of view and a uniformly bright background area is needed.

Which light is the right one depends not only on the form factor and the light color, but also on the working distance, the part under inspection and the camera. Tell us what you need to inspect and we will match light, lens and controller to one another and quote price and delivery time.
