Backlight MV-LBSS-H-150-100-B2

The MV-LBSS-H-150-100-B2 backlight from HIKROBOT is a transmitted-light backlight in blue with a 150 mm × 100 mm emitting area. The part sits between light and camera and appears as a silhouette, so contours, holes and dimensions can be checked regardless of surface and color.

Technical data

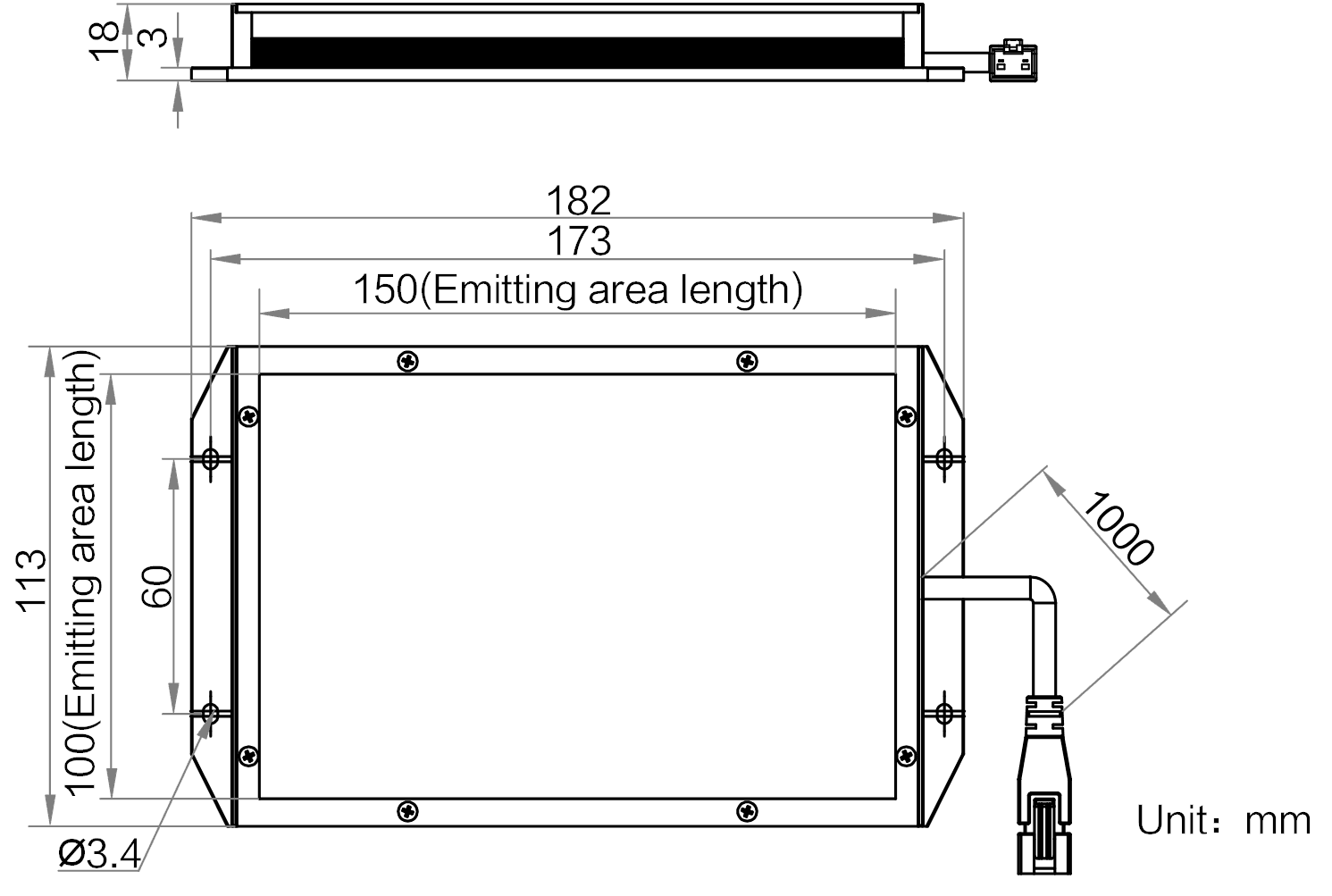

The emitting area measures 150 mm × 100 mm. At a distance of 100 mm the light reaches an illuminance of at least 8,000 lux at the center. The blue light has a wavelength of 470 nm. A diffuser plate is included. Power consumption is 19 W, the supply 24 V DC, the connection is an SMR-03V-B connector on a 1 m cable. The housing measures 182 mm × 113 mm × 18 mm and weighs 0.45 kg.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 60 °C in storage, each at 20 % to 90 % relative humidity without condensation. Cooling is passive, without a fan.

Applications and selection

Backlights are the choice for dimensional checks and contour comparison, hole and breakthrough inspection, the presence of transparent parts and fill levels. The emitting area should extend beyond the part on all sides. The MV-LBSS-H series comes with emitting areas from 30 mm × 30 mm to 400 mm × 300 mm in white, red and blue. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
