Falcon

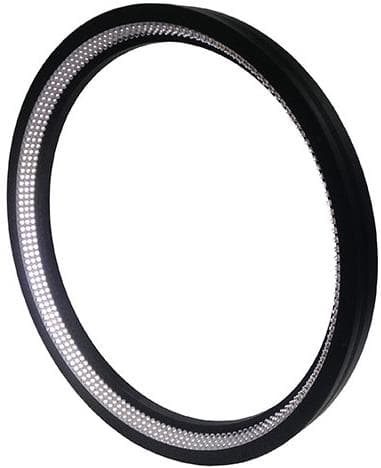

Gewinkelte runde Dunkelfeldbeleuchtung FLDR-i280-LA3-4-B
Manufacturer part number: FLDR-i280-LA3-4-B
Series: FLDR-280-LA3
- Housing shape
- Ring / round
- Light geometry
- Angled / low-angle?
- Illuminated area
- Ø 260 mm?
- Free inner opening
- 240 mm?
- Recommended working distance
- 0 – 30 mm?
- Light color
- Blue, 470 nm
- Operating mode
- Continuous and strobe
- Drive / controller
- 24 V
- Connection
- JST SMR-03V
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | FLDR-i280-LA3-4-B |
|---|---|
| Type | Dark field light |
| Version | Angled |
| Color | Blue |
| Wavelength | 470 nm |
| Size | Ø 280 × 23 mm |
| Illumination Surface | 260 mm |
| Illumination Inside Dimension | 240 mm |
| FOV | Ø 240 mm |
| Working Distance | 0 – 30 mm |
| Operating Voltage | 24 V |
| Power Consumption | 34.56 W |
| Current | 1.44 A |
| Ripple Voltage | ≤ Vs ± 5 % |
| Reverse Battery Protection | Yes |
| Total Number of LED | 504 |
| LED Package | T1 3 mm |
| LED Life Span Continous | 20000 hours |
| LED Life Span Strobe | approx. > 50,000 hours (to 50 % remaining intensity at 25 °C ambient temperature) |
| Eye safety | Exempt group |
| Housing | Aluminum |
| Weight | 694 g |
| Connector | JST SMR-03V |
| Connector Pin | Pin 1: +; Pin 2: not connected; Pin 3: - |
| Cable | 300 mm |
| Operating Condition | 0–35 °C, 20–85 % relative humidity |
| Operating Temperature | after 60 minutes approx. 49 °C |
| Cooling Method | Mounting on a large machine part for heat dissipation |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet FLDR-i280-LA3-4-B
Datasheet · EN · 321 KB
Description
The Falcon FLDR-i280-LA3-4-B belongs to the dark field light range. Connection is made through a JST SMR-03V connector; the attached cable is 300 mm long. Outer dimensions are Ø 280 × 23 mm; it emits blue light at 470 nm. The working distance is 0 to 30 mm; supply voltage is 24 V. Power consumption is 34.56 W; the clear aperture measures 240 mm.
