Falcon

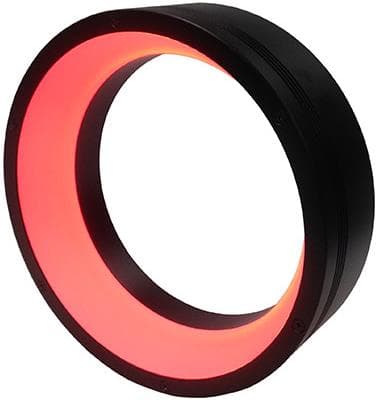

Diffuse runde Dunkelfeldbeleuchtung FFPR-Si136-G
Manufacturer part number: FFPR-Si136-G
Series: FFPR-136
- Housing shape
- Ring / round
- Light geometry
- Angled / low-angle?
- Light distribution
- Diffuse?
- Illuminated area
- Ø 122 mm?
- Recommended working distance
- 0 – 30 mm?
- Light color
- Green, 525 nm
- Operating mode
- Continuous and strobe
- Drive / controller
- 24 V
- Connection
- JST SMR-03V
Price and availability on request
Request this item directly by email
Not sure which model fits?
One of our staff will review your application and recommend the right configuration.
Have your application reviewedTechnical data
| Manufacturer part number | FFPR-Si136-G |
|---|---|
| Type | Dark field light |
| Version | Standard |
| Color | Green |
| Wavelength | 525 nm |
| Size | Ø 136 × 40 mm |
| Illumination Surface | Ø 122 mm |
| Illumination Inside Dimension | 105 mm |
| FOV | Ø 105 mm |
| Working Distance | 0 – 30 mm |
| Operating Voltage | 24 V |
| Power Consumption | 5.76 W |
| Current | 0.24 A |
| Ripple Voltage | ≤ Vs ± 5 % |
| Reverse Battery Protection | Yes |
| Total Number of LED | 84 |
| LED Package | SMD |
| LED Life Span Continous | 20000 hours |
| LED Life Span Strobe | approx. > 50,000 hours (to 50 % remaining intensity at 25 °C ambient temperature) |
| Eye safety | Exempt group |
| Ingress Protection | IP 40 |
| Housing | Aluminum |
| Weight | approx. 410 g |
| Connector | JST SMR-03V |
| Connector Pin | Pin 1: +; Pin 2: not connected; Pin 3: - |
| Cable | 300 mm |
| Operating Condition | 0–35 °C, 20–85 % relative humidity |
| Operating Temperature | after 60 minutes approx. 40 °C |
| Cooling Method | Mounting on a large machine part for heat dissipation |
Data according to the manufacturer's documentation. The current manufacturer datasheet, quotation and order confirmation are authoritative. Errors and changes excepted.
Dimensional drawing
Documents
- Download datasheet
Datasheet FFPR-Si136-G
Datasheet · EN · 268 KB
Description
The Falcon FFPR-Si136-G belongs to the dark field light range. The illuminated surface measures Ø 122 mm; connection is made through a JST SMR-03V connector. The attached cable is 300 mm long; outer dimensions are Ø 136 × 40 mm. It emits green light at 525 nm; the working distance is 0 to 30 mm. Supply voltage is 24 V; power consumption is 5.76 W. The clear aperture measures 105 mm.
