Bar light MV-LLDS-H-1400-40-R

The MV-LLDS-H-1400-40-R bar light from HIKROBOT is a bar light in red with a 1266 mm × 31.6 mm emitting area. 6 rows of LEDs behind a diffuser plate give even light along the full length; used singly, in pairs or in sets of four, bar lights illuminate long parts, webs and edges at any chosen angle.

Technical data

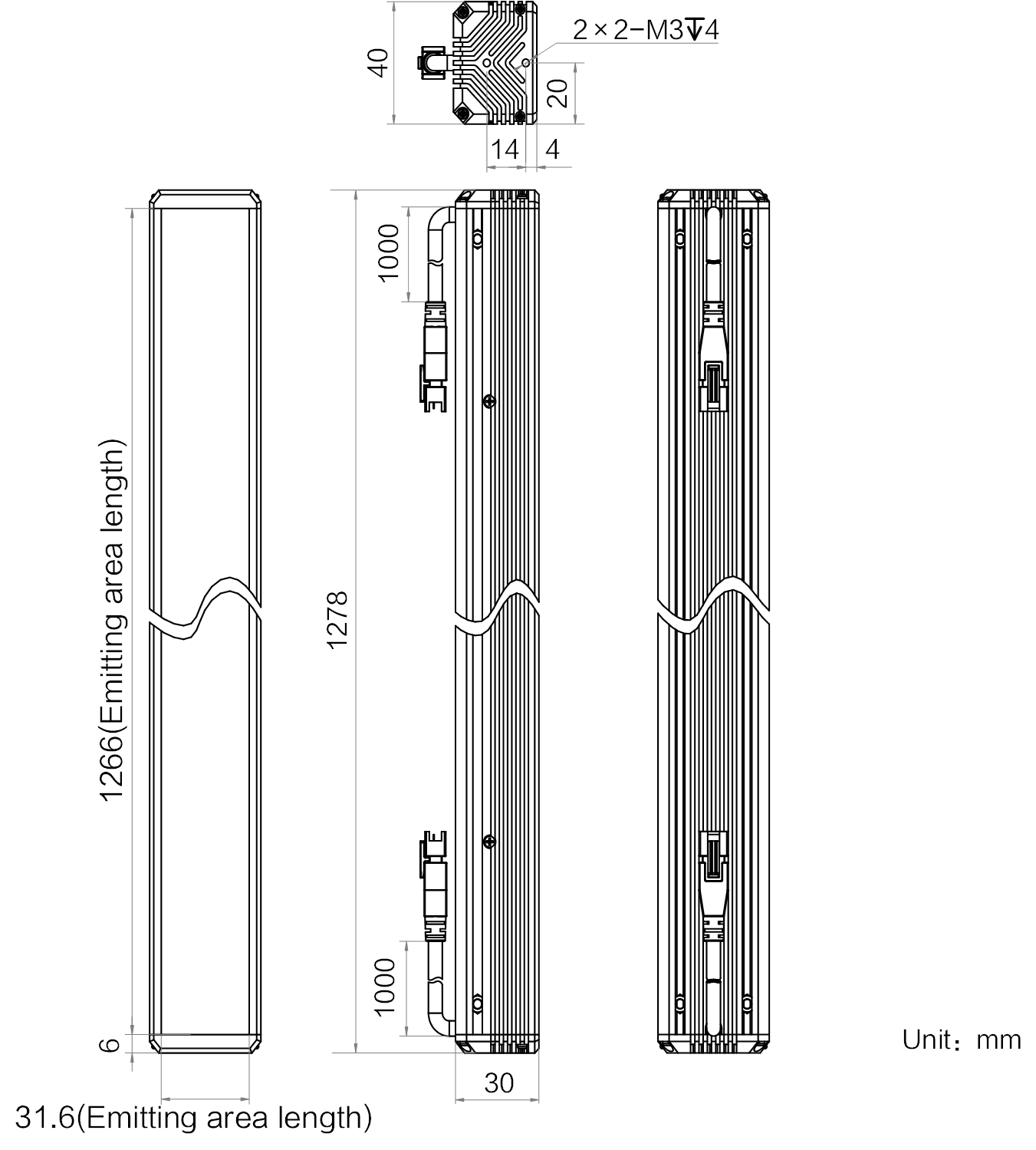

The emitting area measures 1266 mm × 31.6 mm. The recommended working distance ranges from 30 mm to 500 mm; at a distance of 100 mm the light reaches an illuminance of at least 6,500 lux at the center. The red light has a wavelength of 625 nm. A PMMA diffuser plate is built in. Power consumption is 83.5 W, the connection is a Dual-channel SMR-03V-B connector on a 1 m cable. The housing measures 1278 mm × 40 mm × 30 mm and weighs 2.45 kg.

Operating conditions

The permissible range is 0 °C to 40 °C in operation and -20 °C to 60 °C in storage, each at 20 % to 90 % relative humidity without condensation. HIKROBOT states the photobiological safety class as "no danger".

Applications and selection

Bar lights are the choice when a long, narrow field has to be lit evenly or the light has to come from a defined direction: as grazing light for scratches and edges, as side lighting for embossing, in pairs for wide surfaces. The MV-LLDS-H series comes in nominal lengths from 50 mm to 1400 mm and in widths of 30 and 40 mm, in white, red, blue and infrared. The light runs on a HIKROBOT MV-LE series light controller; matching controllers, extension cables, cameras and lenses are listed in the catalog. We are glad to help with sizing by field of view, working distance and light color; requests go through the inquiry basket.
